RJK0391DPA-00#J5A

RJK0391DPA-00#J5A

Part NumberRJK0391DPA-00#J5A

ManufacturerRenesas Electronics America

DescriptionMOSFET N-CH 30V 50A 8WPAK

DatasheetRJK0391DPA

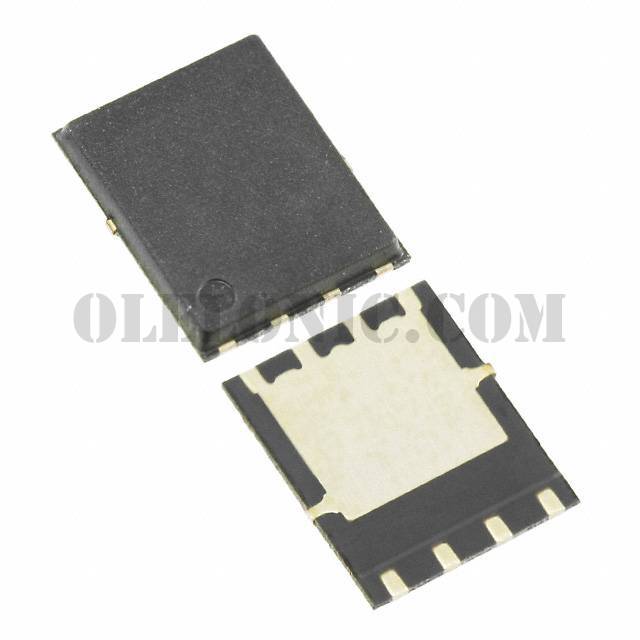

Package / Case8-PowerWDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 50A (Ta) 50W (Tc) Surface Mount 8-WPAK (3)

To learn about the specification of RJK0391DPA-00#J5A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RJK0391DPA-00#J5A with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RJK0391DPA-00#J5A.
We are offering RJK0391DPA-00#J5A for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RJK0391DPA-00#J5A - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	RJK0391DPA
Standard Package	1
Manufacturer	Renesas Electronics America
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	50A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	2.9mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	34nC @ 4.5V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	5600pF @ 10V
FET Feature	-
Power Dissipation (Max)	50W (Tc)
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-WPAK (3)
Package / Case	8-PowerWDFN
