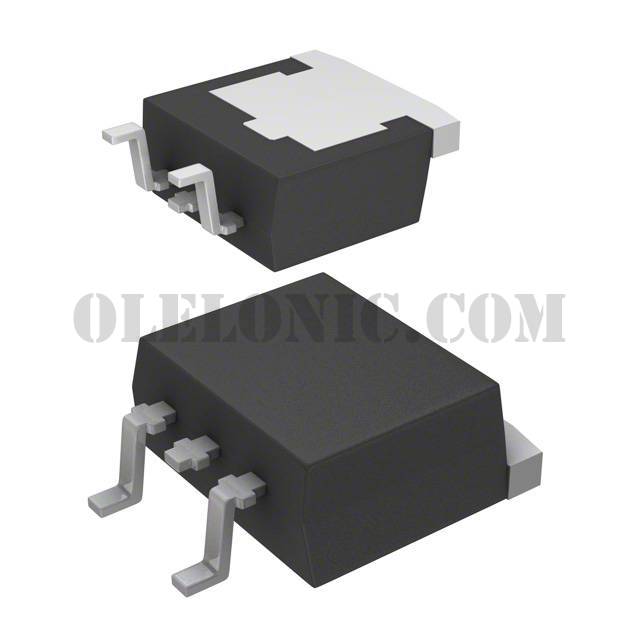

RJH60A83RDPE-00#J3

Part NumberRJH60A83RDPE-00#J3

ManufacturerRenesas Electronics America

DescriptionIGBT 600V 20A 52W LDPAK

DatasheetRJH60A83RDPE

Package / CaseSC-83

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Trench 600V 20A 52W Surface Mount 4-LDPAK

To learn about the specification of RJH60A83RDPE-00#J3, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RJH60A83RDPE-00#J3 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RJH60A83RDPE-00#J3.
We are offering RJH60A83RDPE-00#J3 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RJH60A83RDPE-00#J3 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - IGBTs - Single

Datasheet

RJH60A83RDPE

Standard Package

1000

Manufacturer

Renesas Electronics America

Series

Packaging

Tape & Reel (TR)

Part Status

Obsolete

IGBT Type

Trench

Voltage - Collector Emitter Breakdown (Max)

600V

Current - Collector (Ic) (Max)

20A

Vce(on) (Max) @ Vge, Ic

2.6V @ 15V, 10A

Power - Max

52W

Switching Energy

230µJ (on), 160µJ (off)

Input Type

Standard

Gate Charge

19.7nC

Td (on/off) @ 25°C

31ns/54ns

Test Condition

300V, 10A, 5Ohm, 15V

Reverse Recovery Time (trr)

130ns

Operating Temperature

150°C (TJ)

Mounting Type

Surface Mount

Package / Case

SC-83

Supplier Device Package

4-LDPAK

Base Part Number

RJH60A
