Categories	Potentiometers, Variable Resistors / Rotary Potentiometers, Rheostats
Datasheet	Rheostats
Standard Package	1
Manufacturer	Ohmite
Series	E
Packaging	Bulk
Part Status	Active
Resistance (Ohms)	100
Tolerance	±10%
Power (Watts)	12.5W
Built in Switch	None
Number of Turns	1
Taper	Linear
Number of Gangs	1
Adjustment Type	User Defined
Temperature Coefficient	-
Rotation	300°
Resistive Material	Wirewound
Termination Style	Solder Lug
Actuator Type	Slotted
Actuator Length	0.625" (15.88mm)
Actuator Diameter	0.125" (3.18mm)
Bushing Thread	1/4-32
Mounting Type	Panel Mount
Size - Body	-

RES5K0E	Ohmite, 5k Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
501S42E7R5CV4E	Johanson Technology Inc., 7.5pF ±0.25pF 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
RES100E	Ohmite, 100 Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
RES175E	Ohmite, 175 Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
RES1K5E	Ohmite, 1.5k Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
501S42E330JV4E	Johanson Technology Inc., 33pF ±5% 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
RES10RE	Ohmite, 10 Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
RES3K5E	Ohmite, 3.5k Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
501S42E101JV4E	Johanson Technology Inc., 100pF ±5% 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
RES75RE	Ohmite, 75 Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Turn Wirewound 12.5W Solder Lug,	View
501S42E120JV4E	Johanson Technology Inc., 12pF ±5% 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View
501S42E330JV4E	Johanson Technology Inc., 33pF ±5% 500V Ceramic Capacitor C0G, NP0 1111 (2828 Metric),	View

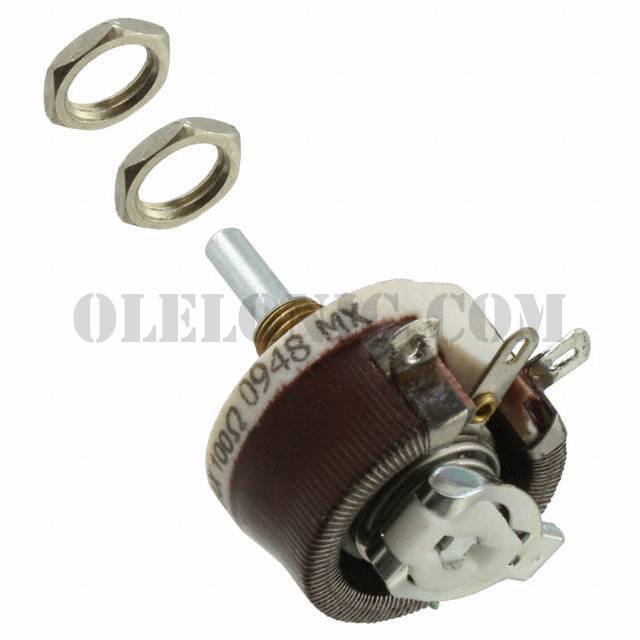

RES100E
