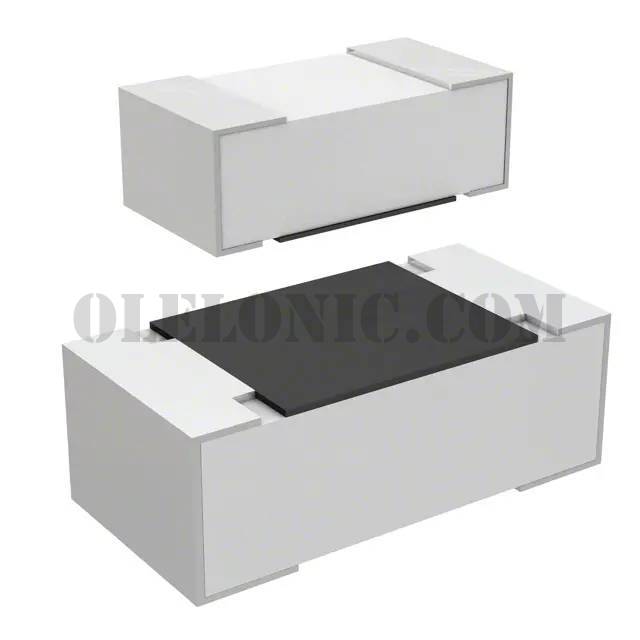

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	RCG e3 Series Datasheet
Standard Package	10000
Manufacturer	Vishay Dale
Series	RCG
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	100 Ohms
Tolerance	±5%
Power (Watts)	0.063W, 1/16W
Composition	Thick Film
Features	-
Temperature Coefficient	±200ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402
Size / Dimension	0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max)	0.016" (0.40mm)
Number of Terminations	2
Failure Rate	-
