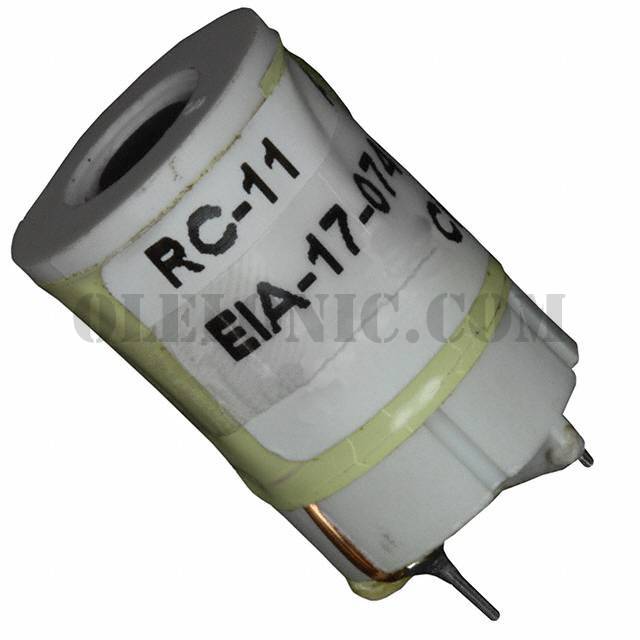

RC-11

Part NumberRC-11

ManufacturerTriad Magnetics

DescriptionFIXED IND 75UH 2.5A 70 MOHM TH

DatasheetRC-11

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description75µH Unshielded Wirewound Inductor 2.5A 70mOhm Radial, Vertical Cylinder

To learn about the specification of RC-11, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RC-11 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RC-11.
We are offering RC-11 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RC-11 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	RC-11
Standard Package	1
Manufacturer	Triad Magnetics
Series	RC
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	75µH
Tolerance	±10%
Current Rating (Amps)	2.5A
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	70mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.600" Dia (15.24mm)
Height - Seated (Max)	0.930" (23.62mm)
