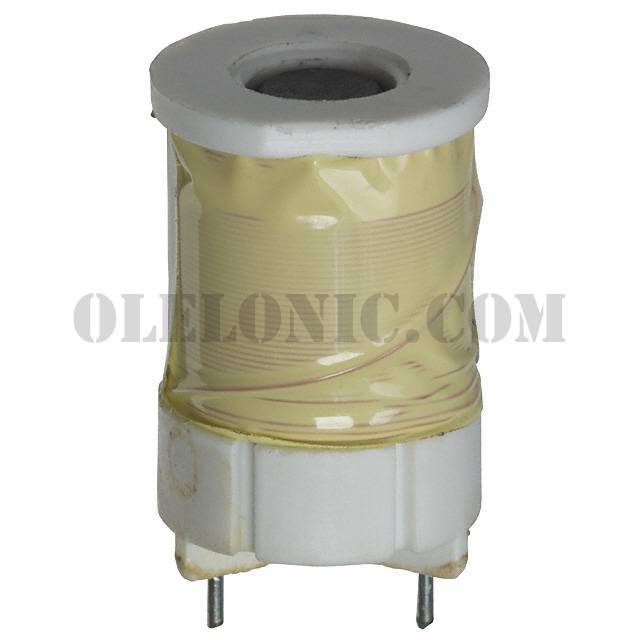

RC-1

Part NumberRC-1

ManufacturerTriad Magnetics

DescriptionFIXED IND 5.6MH 250MA 6.1 OHM TH

DatasheetRC-1

Package / CaseRadial, Vertical Cylinder

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5.6mH Unshielded Wirewound Inductor 250mA 6.1Ohm Radial, Vertical Cylinder

To learn about the specification of RC-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RC-1 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RC-1.
We are offering RC-1 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RC-1 - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	RC-1
Standard Package	1
Manufacturer	Triad Magnetics
Series	RC
Packaging	Bulk
Part Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	5.6mH
Tolerance	±10%
Current Rating (Amps)	250mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	6.1Ohm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 85°C
Inductance Frequency - Test	10kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical Cylinder
Supplier Device Package	-
Size / Dimension	0.600" Dia (15.24mm)
Height - Seated (Max)	0.930" (23.62mm)
