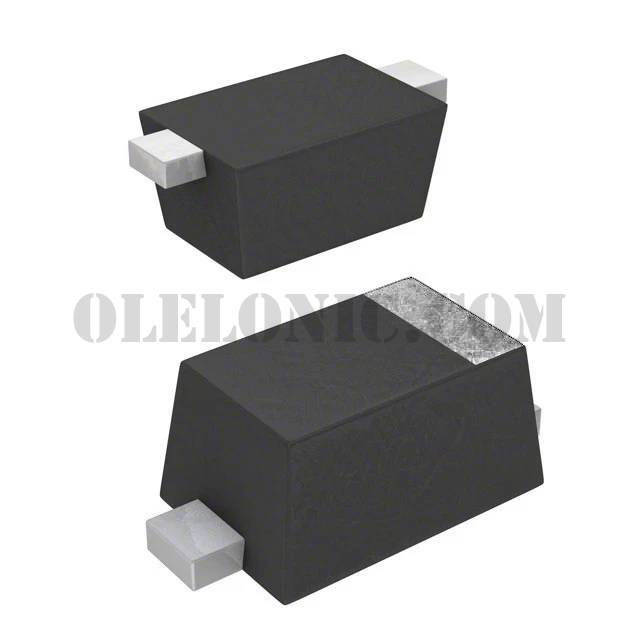

RB520SM-30T2R


RB520SM-30T2R

Part NumberRB520SM-30T2R

Manufacturer

Description

Datasheet

Package / CaseSC-79, SOD-523

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

RB520SM-30T2R - Product Attributes

Categories Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet
Standard Package1
ManufacturerRohm Semiconductor
Series-
PackagingCut Tape (CT)
Part StatusActive
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)30V
Current - Average Rectified (Io)200mA
Voltage - Forward (Vf) (Max) @ If580mV @ 200mA
SpeedSmall Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr1µA @ 10V
Capacitance @ Vr, F-
Mounting TypeSurface Mount
Package / CaseSC-79, SOD-523
Supplier Device PackageEMD2
Operating Temperature - Junction150°C (Max)
