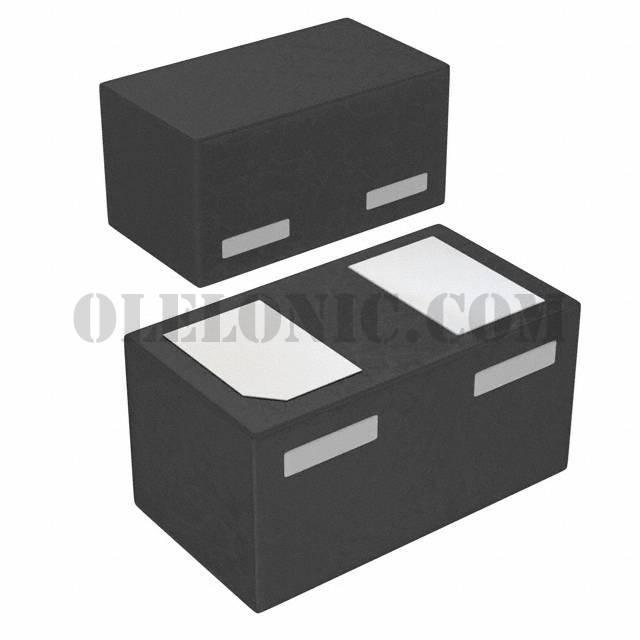

RB520S-30DP-TP

RB520S-30DP-TP

Part NumberRB520S-30DP-TP

ManufacturerMicro Commercial Co

DescriptionDIODE SCHOTTKY 30V 100MA 0201

DatasheetRB520S-30DP

Package / Case0201 (0603 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 100mA Surface Mount 0201

To learn about the specification of RB520S-30DP-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add RB520S-30DP-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of RB520S-30DP-TP.
We are offering RB520S-30DP-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

RB520S-30DP-TP - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	RB520S-30DP
Standard Package	1
Manufacturer	Micro Commercial Co
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	100mA
Voltage - Forward (Vf) (Max) @ If	850mV @ 100mA
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	20µA @ 30V
Capacitance @ Vr, F	-
Mounting Type	Surface Mount
Package / Case	0201 (0603 Metric)
Supplier Device Package	0201
Operating Temperature - Junction	125°C (Max)
