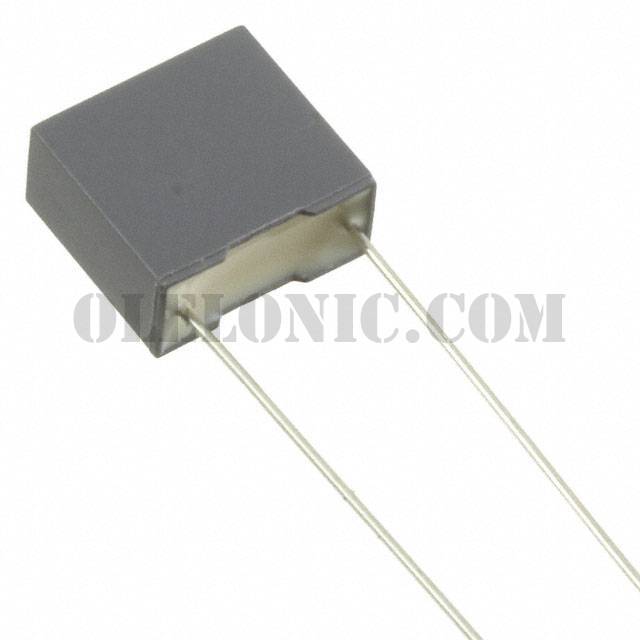

Categories	Capacitors / Film Capacitors
Datasheet	R75 Series Automotive
Standard Package	1200
Manufacturer	KEMET
Series	R75
Packaging	Bulk
Part Status	Active
Capacitance	0.022µF
Tolerance	±5%
Voltage Rating - AC	250V
Voltage Rating - DC	630V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.512" L x 0.236" W (13.00mm x 6.00mm)
Height - Seated (Max)	0.476" (12.10mm)
Termination	PC Pins
Lead Spacing	0.394" (10.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R75PI2470AA30J	KEMET, 0.047µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75PN32204030J	KEMET, 0.22µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75UI14704030J	KEMET, 4700pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R75	View
R75TI21504030J	KEMET, 0.015µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75II36804040J	KEMET, 0.68µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial, R75	View
R75TI1560AA30J	KEMET, 5600pF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75II3330AA40J	KEMET, 0.33µF Film Capacitor 160V 250V Polypropylene (PP), Metallized Radial, R75	View
R75QD0470DQ30J	KEMET, 470pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75UI2150AA30J	KEMET, 0.015µF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R75	View
R75PI26804030J	KEMET, 0.068µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75TR31004040J	KEMET, 0.1µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75QD1220Z330J	KEMET, 2200pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View

R75PF22204030J

Part NumberR75PF22204030J
