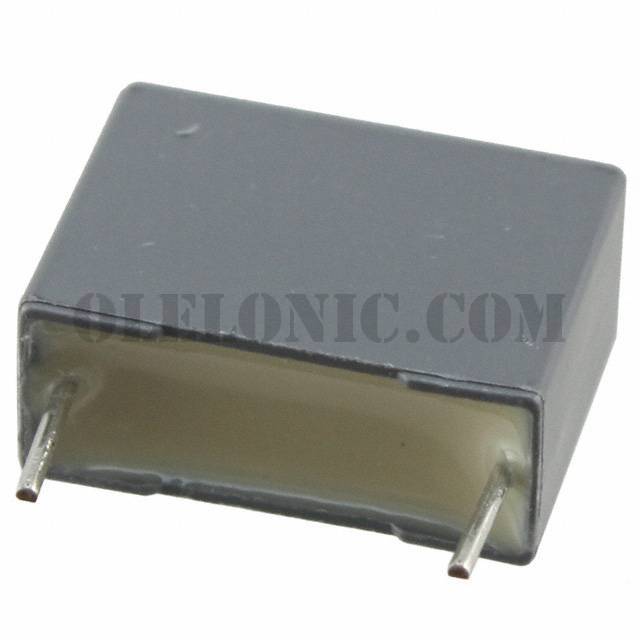

Categories	Capacitors / Film Capacitors
Datasheet	R75 Series Automotive
Standard Package	750
Manufacturer	KEMET
Series	R75
Packaging	Bulk
Part Status	Active
Capacitance	1µF
Tolerance	±10%
Voltage Rating - AC	90V
Voltage Rating - DC	160V
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C ~ 105°C
Mounting Type	Through Hole
Package / Case	Radial
Size / Dimension	0.709" L x 0.394" W (18.00mm x 10.00mm)
Height - Seated (Max)	0.630" (16.00mm)
Termination	PC Pins
Lead Spacing	0.591" (15.00mm)
Applications	Automotive; High Frequency, Switching; High Pulse, DV/DT
Ratings	AEC-Q200
Features	-

R75QD1120Z330J	KEMET, 1200pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75TN24704030J	KEMET, 0.047µF Film Capacitor 650V 1600V (1.6kV) Polypropylene (PP), Metallized Radial, R75	View
R75MN36804030J	KEMET, 0.68µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75MR44704030J	KEMET, 4.7µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75MR42204040J	KEMET, 2.2µF Film Capacitor 220V 400V Polypropylene (PP), Metallized Radial, R75	View
R75PD1680Z340J	KEMET, 6800pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75PI32204030J	KEMET, 0.22µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75PD1470Z340J	KEMET, 4700pF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75PR41504030J	KEMET, 1.5µF Film Capacitor 250V 630V Polypropylene (PP), Metallized Radial, R75	View
R75UI1150DQ40J	KEMET, 1500pF Film Capacitor 700V 2000V (2kV) Polypropylene (PP), Metallized Radial, R75	View
R75QD1220Z330J	KEMET, 2200pF Film Capacitor 400V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View
R75QR41504000J	KEMET, 1.5µF Film Capacitor 250V 1000V (1kV) Polypropylene (PP), Metallized Radial, R75	View

R75GI4100AA00K

Part NumberR75GI4100AA00K
