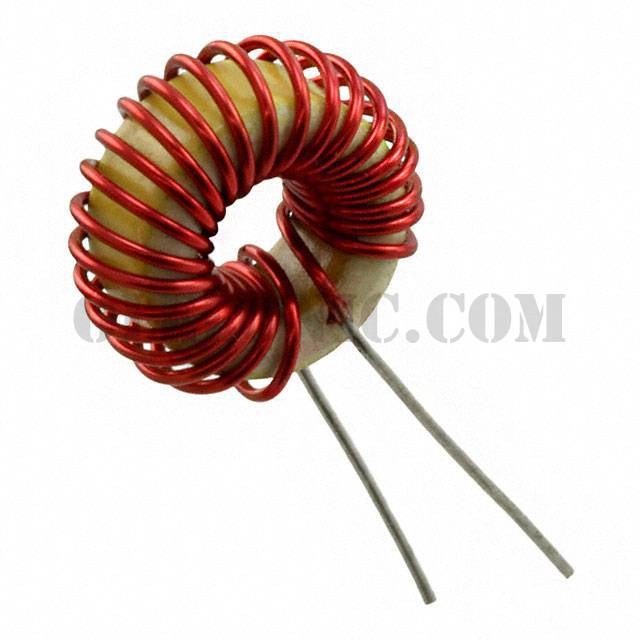

PT25-680

Part NumberPT25-680

ManufacturerAPI Delevan Inc.

DescriptionFIXED IND 25UH 4.4A 35 MOHM TH

DatasheetPT/PTzzzR Series

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description25µH Shielded Toroidal Inductor 4.4A 35mOhm Max Radial, Vertical (Open)

To learn about the specification of PT25-680, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PT25-680 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PT25-680.
We are offering PT25-680 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PT25-680 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PT/PTzzzR Series

Standard Package

100

Manufacturer

API Delevan Inc.

Series

Packaging

Bulk

Part Status

Active

Type

Toroidal

Material - Core

Iron Powder

Inductance

25µH

Tolerance

±15%

Current Rating (Amps)

4.4A

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

35mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

Inductance Frequency - Test

1kHz

Mounting Type

Through Hole

Package / Case

Radial, Vertical (Open)

Supplier Device Package

Size / Dimension

0.680" Dia x 0.370" W (17.27mm x 9.40mm)

Height - Seated (Max)
