Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PSMN3R0-60PS
Standard Package	50
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	100A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	3mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	130nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	8079pF @ 30V
FET Feature	-
Power Dissipation (Max)	306W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole

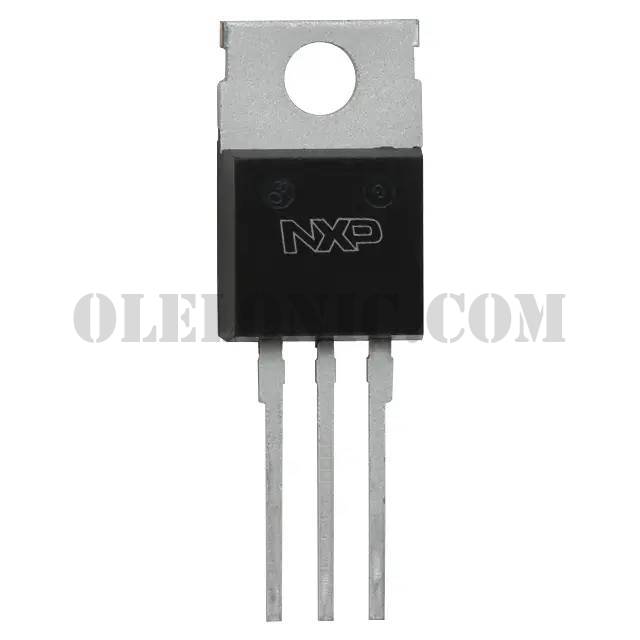

Supplier Device Package	TO-220AB
Package / Case	TO-220-3
