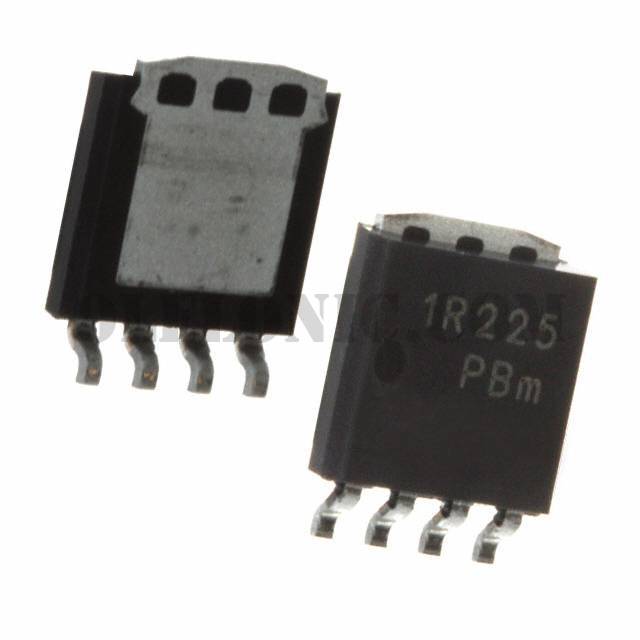

PSMN0R9-30YLDX

PSMN0R9-30YLDX

Part NumberPSMN0R9-30YLDX

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CH 30V 300A 56LFPAK

DatasheetPSMN0R9-30YLD

Package / CaseSOT-1023, 4-LFPAK

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 30V 300A 291W Surface Mount LFPAK56, Power-SO8

To learn about the specification of PSMN0R9-30YLDX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PSMN0R9-30YLDX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PSMN0R9-30YLDX.
We are offering PSMN0R9-30YLDX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PSMN0R9-30YLDX - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PSMN0R9-30YLD
Standard Package	1500
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	300A
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	0.87mOhm @ 25A, 10V
Vgs(th) (Max) @ Id	2.2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	109nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7668pF @ 15V
FET Feature	-
Power Dissipation (Max)	291W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK56, Power-SO8
Package / Case	SOT-1023, 4-LFPAK
