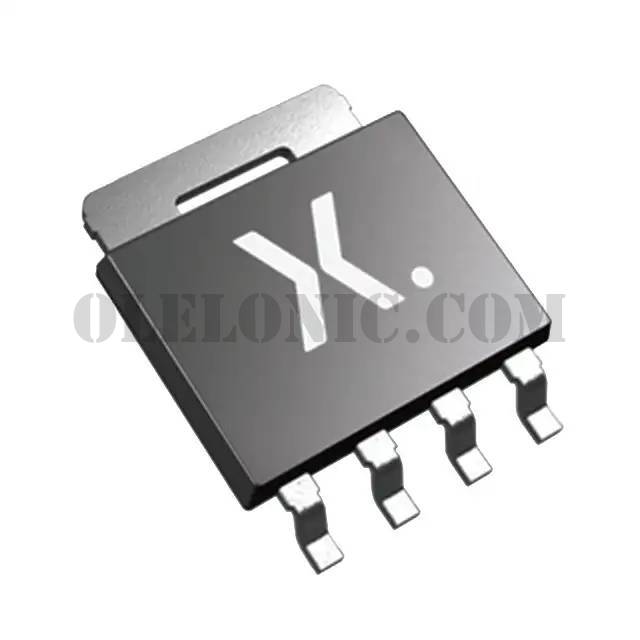

PSMN013-60YLX

PSMN013-60YLX

Part NumberPSMN013-60YLX

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CH 60V LFPAK56

DatasheetPSMN013-60YL

Package / CaseSC-100, SOT-669

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 60V 53A (Tc) 95W (Tc) Surface Mount LFPAK56, Power-SO8

To learn about the specification of PSMN013-60YLX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PSMN013-60YLX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PSMN013-60YLX.
We are offering PSMN013-60YLX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PSMN013-60YLX - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PSMN013-60YL
Standard Package	1500
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	53A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	5V, 10V
Rds On (Max) @ Id, Vgs	13mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	2.1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs	33.2nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2603pF @ 25V
FET Feature	-
Power Dissipation (Max)	95W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	LFPAK56, Power-SO8
Package / Case	SC-100, SOT-669
