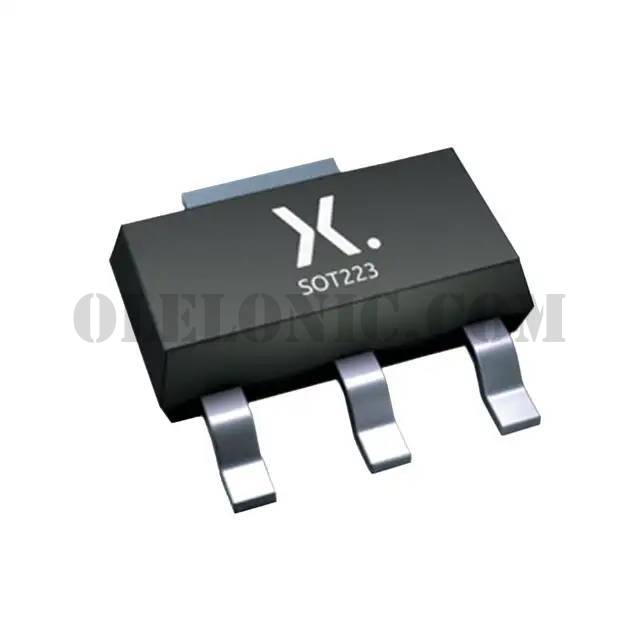

PMT560ENEAX

PMT560ENEAX

Part NumberPMT560ENEAX

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CHANNEL 100V 1.1A SC73

DatasheetPMT560ENEA

Package / CaseTO-261-4, TO-261AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 1.1A (Ta) 750mW (Ta) Surface Mount SC-73

To learn about the specification of PMT560ENEAX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMT560ENEAX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMT560ENEAX.
We are offering PMT560ENEAX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMT560ENEAX - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PMT560ENEA
Standard Package	1000
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	1.1A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	715mOhm @ 1.1A, 10V
Vgs(th) (Max) @ Id	2.7V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.4nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	112pF @ 50V
FET Feature	-
Power Dissipation (Max)	750mW (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SC-73
Package / Case	TO-261-4, TO-261AA
