Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	PMLL4148L, 4448 Datasheet
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Standard
Voltage - DC Reverse (Vr) (Max)	75V
Current - Average Rectified (Io)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	1V @ 50mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	4ns
Current - Reverse Leakage @ Vr	25nA @ 20V
Capacitance @ Vr, F	4pF @ 0V, 1MHz
Mounting Type	Surface Mount

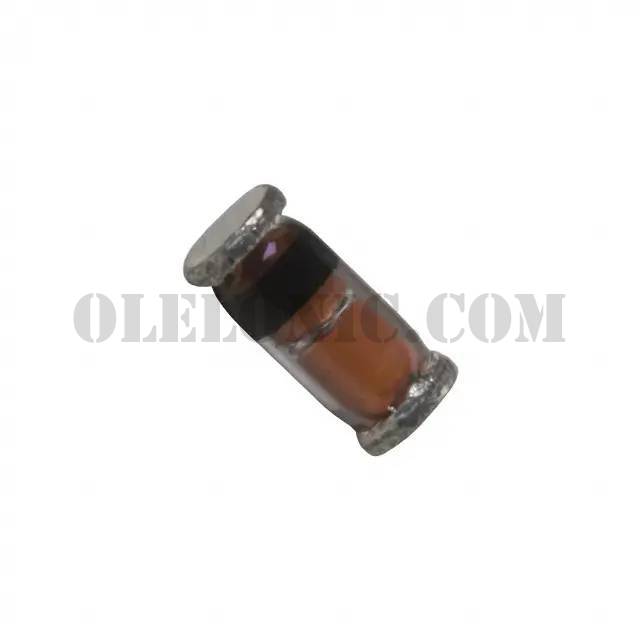

Package / Case	DO-213AC, MINI-MELF, SOD-80
Supplier Device Package	LLDS; MiniMelf
Operating Temperature - Junction	200°C (Max)
Base Part Number	LL4148
