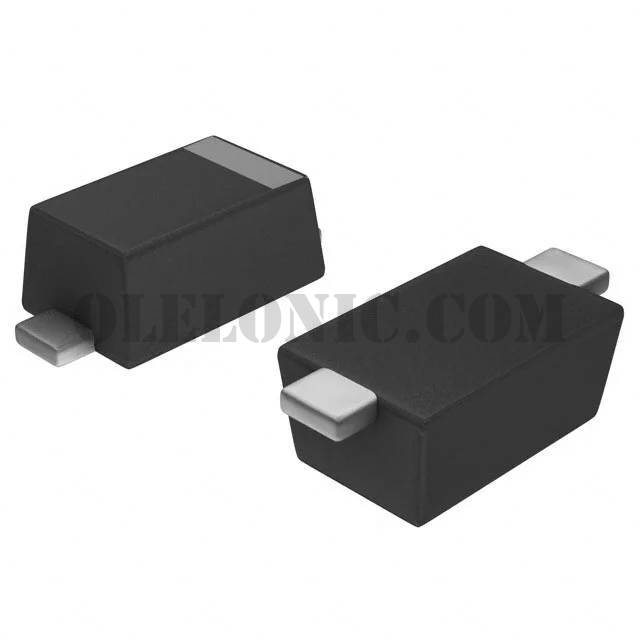

PMEG40T30ERX

PMEG40T30ERX

Part NumberPMEG40T30ERX

ManufacturerNexperia USA Inc.

DescriptionDIODE SCHOTTKY 40V 3A SOD123W

DatasheetPMEG40T30ERX

Package / CaseSOD-123W

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 40V 3A Surface Mount SOD-123W

To learn about the specification of PMEG40T30ERX, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMEG40T30ERX with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMEG40T30ERX.
We are offering PMEG40T30ERX for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMEG40T30ERX - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	PMEG40T30ERX
Standard Package	3000
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	460mV @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	18ns
Current - Reverse Leakage @ Vr	28µA @ 40V
Capacitance @ Vr, F	560pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-123W
Supplier Device Package	SOD-123W
Operating Temperature - Junction	175°C (Max)
