Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single

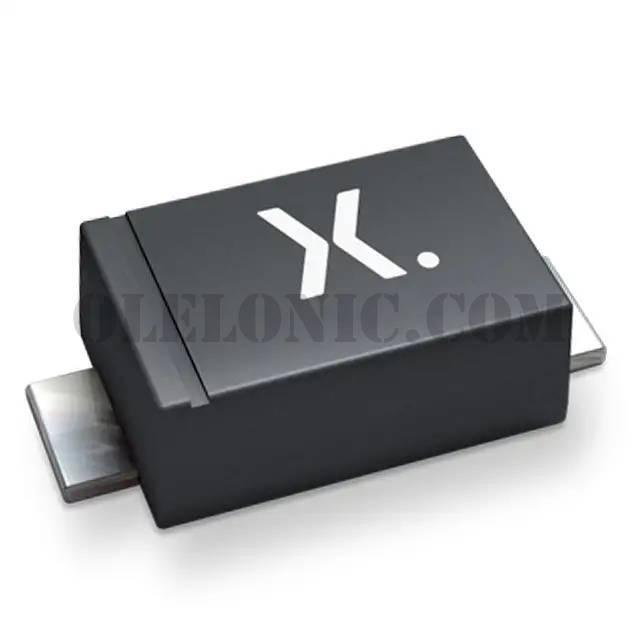

Datasheet	PMEG4010ETR
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	490mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	4.4ns
Current - Reverse Leakage @ Vr	50µA @ 40V
Capacitance @ Vr, F	130pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-123W
Supplier Device Package	CFP3
Operating Temperature - Junction	175°C (Max)
