Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	PMEG4010EPK
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	40V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	600mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	3ns
Current - Reverse Leakage @ Vr	4µA @ 1V
Capacitance @ Vr, F	60pF @ 1V, 1MHz
Mounting Type	Surface Mount

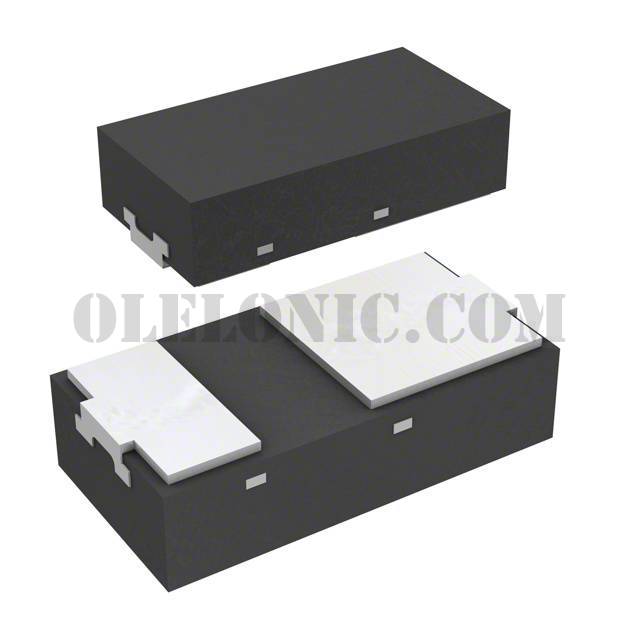

Package / Case	2-XDFN
Supplier Device Package	DFN1608D-2
Operating Temperature - Junction	150°C (Max)

NSR10F40NXT5G	ON Semiconductor, Diode Schottky 40V 1A (DC) Surface Mount 2-DSN (1.4x0.6),	View
SS3P6-M3/85A	Vishay Semiconductor Diodes Division, Diode Schottky 60V 3A Surface Mount DO-220AA (SMP), eSMP®	View
PMEG6030ETPX	Nexperia USA Inc., Diode Schottky 60V 3A Surface Mount SOD-128/CFP5,	View
CDBU0245-HF	Comchip Technology, Diode Schottky 45V 200mA Surface Mount 0603C/SOD-523F,	View
RBR2MM60CTFTR	Rohm Semiconductor, Diode Schottky 60V 2A Surface Mount PMDU, Automotive, AEC-Q101	View
RB162LAM-60TFTR	Rohm Semiconductor, Diode Schottky 60V 1A Surface Mount PMDTM, Automotive, AEC-Q101	View
1N6263W-7-F	Diodes Incorporated, Diode Schottky 60V 15mA (DC) Surface Mount SOD-123,	View
PMEG050T150EPDZ	Nexperia USA Inc., Diode Schottky 50V 15A Surface Mount CFP15, Automotive, AEC-Q101	View
B530C-13-F	Diodes Incorporated, Diode Schottky 30V 5A Surface Mount SMC,	View
PMEG1020EV,115	Nexperia USA Inc., Diode Schottky 10V 2A (DC) Surface Mount SOT-666,	View
MBRS240LT3G	ON Semiconductor, Diode Schottky 40V 2A Surface Mount SMB,	View
SK32B-LTP	Micro Commercial Co, Diode Schottky 20V 3A Surface Mount DO-214AA (SMB),	View

PMEG4010EPK,315

Part NumberPMEG4010EPK,315
