Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	PMEG3030EP
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	3A
Voltage - Forward (Vf) (Max) @ If	360mV @ 3A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr	5mA @ 30V
Capacitance @ Vr, F	470pF @ 1V, 1MHz
Mounting Type	Surface Mount

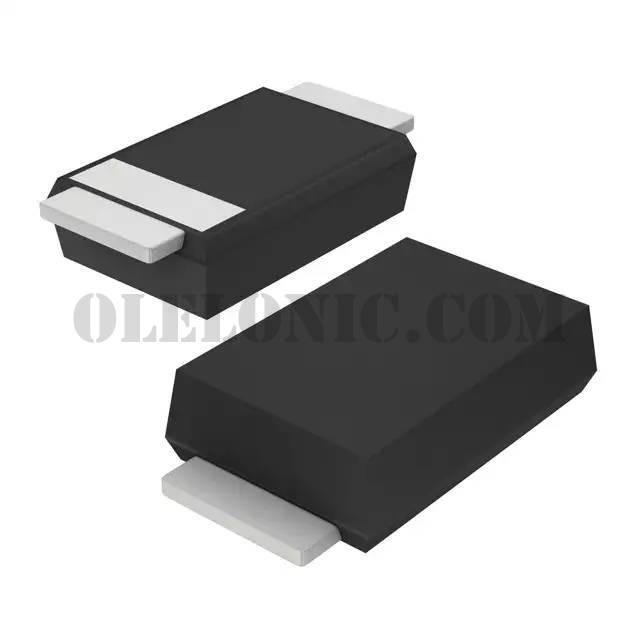

Package / Case	SOD-128
Supplier Device Package	CFP5
Operating Temperature - Junction	150°C (Max)
Base Part Number	PMEG3030
