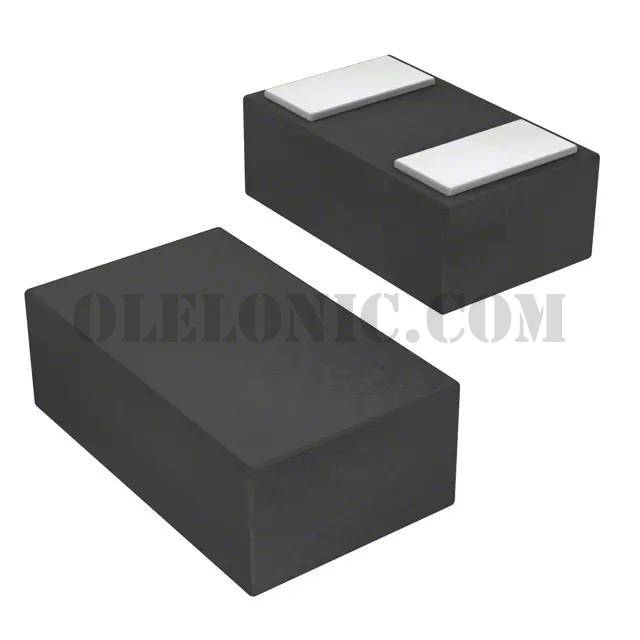

PMEG3010AESBYL

PMEG3010AESBYL

Part NumberPMEG3010AESBYL

ManufacturerNexperia USA Inc.

DescriptionDIODE SCHOTTKY 30V 1A SOD993

DatasheetPMEG3010AESB

Package / Case2-XDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 30V 1A Surface Mount DSN1006-2

To learn about the specification of PMEG3010AESBYL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMEG3010AESBYL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMEG3010AESBYL.
We are offering PMEG3010AESBYL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMEG3010AESBYL - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	PMEG3010AESB
Standard Package	10000
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	1A
Voltage - Forward (Vf) (Max) @ If	480mV @ 1A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	3.5ns
Current - Reverse Leakage @ Vr	255µA @ 20V
Capacitance @ Vr, F	86pF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	2-XDFN
Supplier Device Package	DSN1006-2
Operating Temperature - Junction	150°C (Max)
