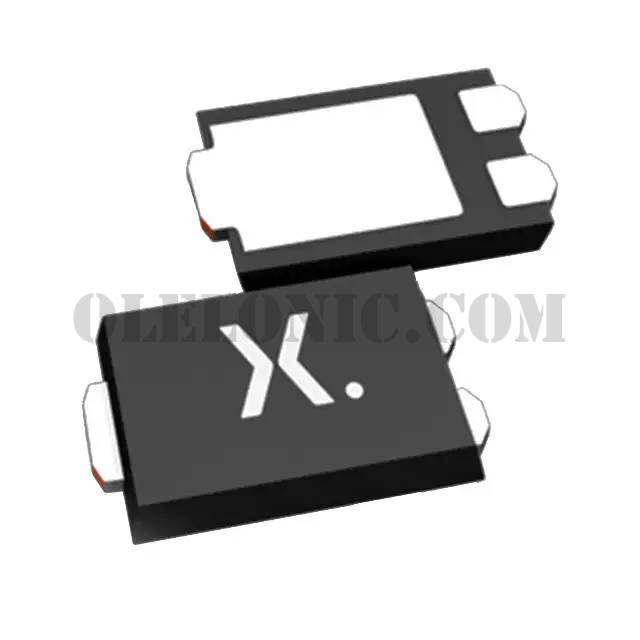

PMEG045T150EIPDZ

PMEG045T150EIPDZ

Part NumberPMEG045T150EIPDZ

ManufacturerNexperia USA Inc.

DescriptionDIODE SCHOTTKY 45V 21A CFP15

DatasheetPMEG045T150EIPD

Package / CaseTO-277, 3-PowerDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionDiode Schottky 45V 15A (DC) Surface Mount CFP15

To learn about the specification of PMEG045T150EIPDZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMEG045T150EIPDZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMEG045T150EIPDZ.
We are offering PMEG045T150EIPDZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMEG045T150EIPDZ - Product Attributes

Categories	Discrete Semiconductor Products / Diodes - Rectifiers - Single
Datasheet	PMEG045T150EIPD
Standard Package	1
Manufacturer	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Packaging	Cut Tape (CT)
Part Status	Active
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	15A (DC)
Voltage - Forward (Vf) (Max) @ If	510mV @ 15A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	49ns
Current - Reverse Leakage @ Vr	98µA @ 45V
Capacitance @ Vr, F	1.7nF @ 1V, 1MHz
Mounting Type	Surface Mount
Package / Case	TO-277, 3-PowerDFN
Supplier Device Package	CFP15
Operating Temperature - Junction	175°C (Max)
