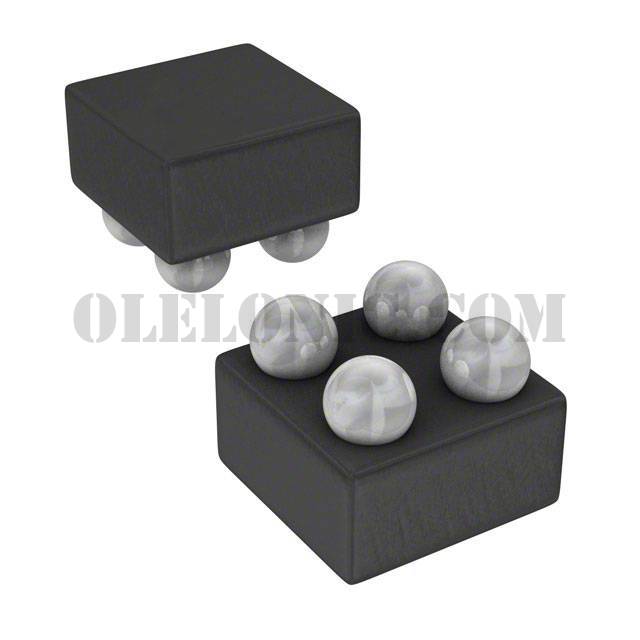

PMCM440VNEZ

PMCM440VNEZ

Part NumberPMCM440VNEZ

ManufacturerNexperia USA Inc.

DescriptionMOSFET N-CH 12V 4WLCSP

DatasheetPMCM440VNE

Package / Case4-XFBGA, WLCSP

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 12V 3.9A (Ta) 400mW (Ta), 12.5W (Tc) Surface Mount 4-WLCSP (0.78x0.78)

To learn about the specification of PMCM440VNEZ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMCM440VNEZ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMCM440VNEZ.
We are offering PMCM440VNEZ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMCM440VNEZ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	PMCM440VNE
Standard Package	9000
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	12V
Current - Continuous Drain (Id) @ 25°C	3.9A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V
Rds On (Max) @ Id, Vgs	67mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs	8.2nC @ 4.5V
Vgs (Max)	±8V
Input Capacitance (Ciss) (Max) @ Vds	360pF @ 6V
FET Feature	-
Power Dissipation (Max)	400mW (Ta), 12.5W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	4-WLCSP (0.78x0.78)
Package / Case	4-XFBGA, WLCSP
