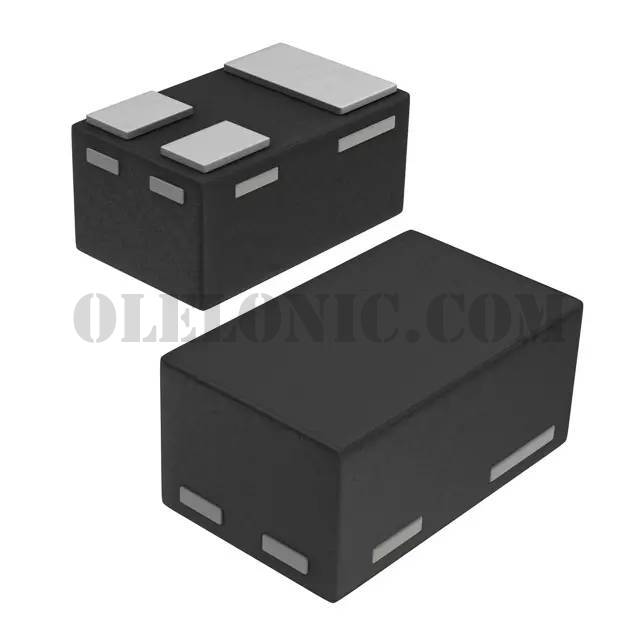

PMBT2222AMYL

PMBT2222AMYL

Part NumberPMBT2222AMYL

ManufacturerNexperia USA Inc.

DescriptionPMBT2222AM/SOT883/XQFN3

DatasheetPMBT2222AM

Package / CaseSC-101, SOT-883

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor NPN 40V 600mA 340MHz 250mW Surface Mount DFN1006-3

To learn about the specification of PMBT2222AMYL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PMBT2222AMYL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PMBT2222AMYL.
We are offering PMBT2222AMYL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PMBT2222AMYL - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single
Datasheet	PMBT2222AM
Standard Package	10000
Manufacturer	Nexperia USA Inc.
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Current - Collector (Ic) (Max)	600mA
Voltage - Collector Emitter Breakdown (Max)	40V
Vce Saturation (Max) @ Ib, Ic	1V @ 50mA, 500mA
Current - Collector Cutoff (Max)	10nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 150mA, 10V
Power - Max	250mW
Frequency - Transition	340MHz
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SC-101, SOT-883
Supplier Device Package	DFN1006-3
