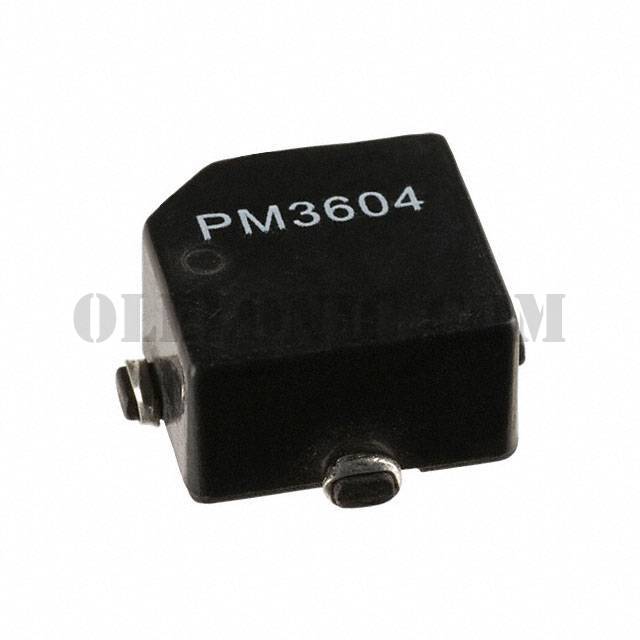

PM3604-15-RC

Part NumberPM3604-15-RC

ManufacturerBourns Inc.

DescriptionINDUCT ARRAY 2 COIL 15UH SMD

DatasheetPM3600 Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionUnshielded 2 Coil Inductor Array 60µH Inductance - Connected in Series 15µH Inductance - Connected in Parallel 41mOhm Max DC Resistance (DCR) - Parallel 2.2A Nonstandard

To learn about the specification of PM3604-15-RC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PM3604-15-RC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PM3604-15-RC.
We are offering PM3604-15-RC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PM3604-15-RC - Product Attributes

Categories	Inductors, Coils, Chokes / Arrays, Signal Transformers
Datasheet	PM3600 Series
Standard Package	1
Manufacturer	Bourns Inc.
Series	PM3600
Packaging	Cut Tape (CT)
Part Status	Active
Number of Coils	2
Inductance - Connected In Parallel	15µH
Inductance - Connected In Series	60µH
Tolerance	±20%
Current Rating - Parallel	2.2A
Current Rating - Series	1.1A
DC Resistance (DCR) - Parallel	41mOhm Max
DC Resistance (DCR) - Series	160mOhm Max
Shielding	Unshielded
Ratings	-
Operating Temperature	-55°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.550" L x 0.452" W (13.97mm x 11.48mm)
Height	0.265" (6.73mm)
Base Part Number	PM3604
