PM2204.331NLT
PM2204.331NLT

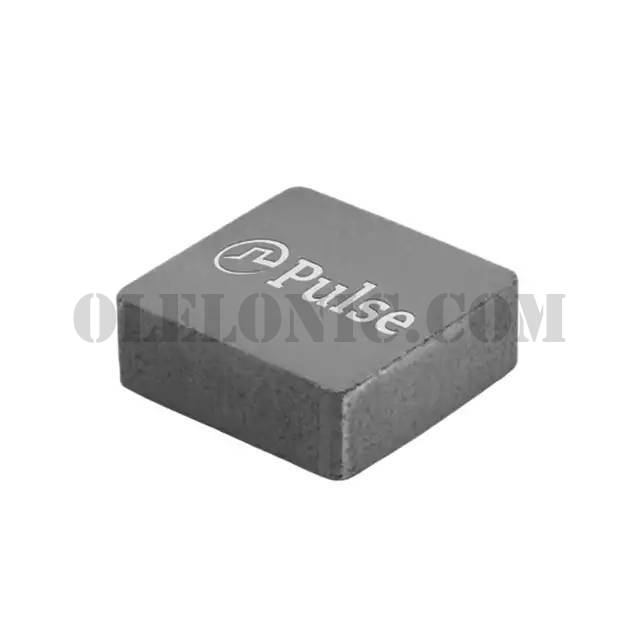

Part Number PM2204.331NLT Description FIXED IND 330NH 25A 2.5MOHM SMD Package / Case NonstandardUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description 330nH Unshielded Inductor 25A 2.5mOhm Max Nonstandard
To learn about the specification of PM2204.331NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PM2204.331NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PM2204.331NLT.
We are offering PM2204.331NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
PM2204.331NLT - Product Attributes
Categories
Inductors, Coils, Chokes / Fixed Inductors
Datasheet PA5004, PM2204 Series Datasheet Standard Package 1 Manufacturer Pulse Electronics Power Series PM2204.XXXNLT Packaging Cut Tape (CT) Part Status Active Type - Material - Core - Inductance 330nH Tolerance ±20% Current Rating (Amps) 25A Current - Saturation 32A Shielding Unshielded DC Resistance (DCR) 2.5mOhm Max Q @ Freq - Frequency - Self Resonant - Ratings AEC-Q200 Operating Temperature -55°C ~ 155°C Inductance Frequency - Test 100kHz Features - Mounting Type Surface Mount Package / Case Nonstandard Supplier Device Package SMD Size / Dimension 0.268" L x 0.252" W (6.80mm x 6.40mm) Height - Seated (Max) 0.122" (3.10mm)
