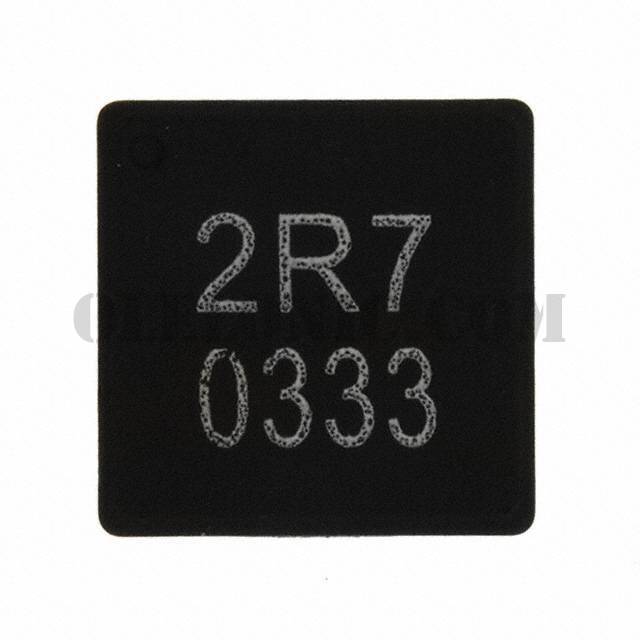

PM12645S-2R7M

Part NumberPM12645S-2R7M

ManufacturerBourns Inc.

DescriptionFIXED IND 2.7UH 12A 4.3 MOHM SMD

DatasheetPM12639S,45S_PM7232S

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2.7µH Shielded Wirewound Inductor 12A 4.3mOhm Max Nonstandard

To learn about the specification of PM12645S-2R7M, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PM12645S-2R7M with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PM12645S-2R7M.
We are offering PM12645S-2R7M for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PM12645S-2R7M - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PM12639S,45S_PM7232S

Standard Package

Manufacturer

Bourns Inc.

Series

PM12645S

Packaging

Cut Tape (CT)

Part Status

Obsolete

Type

Wirewound

Material - Core

Inductance

2.7µH

Tolerance

±20%

Current Rating (Amps)

12A

Current - Saturation

Shielding

Shielded

DC Resistance (DCR)

4.3mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 150°C

Inductance Frequency - Test

100kHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.547" L x 0.531" W (13.90mm x 13.50mm)

Height - Seated (Max)

0.232" (5.90mm)

Base Part Number
