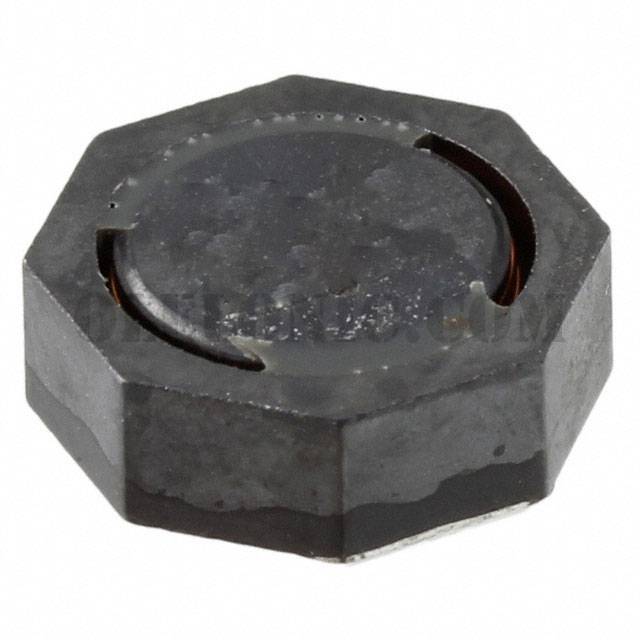

PM104SH-470-RC

Part NumberPM104SH-470-RC

ManufacturerBourns Inc.

DescriptionFIXED IND 47UH 1.65A 121 MOHM

DatasheetPM104SH Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description47µH Shielded Wirewound Inductor 1.65A 121mOhm Max Nonstandard

To learn about the specification of PM104SH-470-RC, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PM104SH-470-RC with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PM104SH-470-RC.
We are offering PM104SH-470-RC for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PM104SH-470-RC - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PM104SH Series

Standard Package

1000

Manufacturer

Bourns Inc.

Series

PM104SH

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Ferrite

Inductance

47µH

Tolerance

±30%

Current Rating (Amps)

1.65A

Current - Saturation

1.6A

Shielding

Shielded

DC Resistance (DCR)

121mOhm Max

Q @ Freq

22 @ 2.52MHz

Frequency - Self Resonant

8MHz

Ratings

Operating Temperature

-40°C ~ 125°C

Inductance Frequency - Test

2.52MHz

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.394" L x 0.394" W (10.00mm x 10.00mm)

Height - Seated (Max)

0.161" (4.10mm)

Base Part Number
