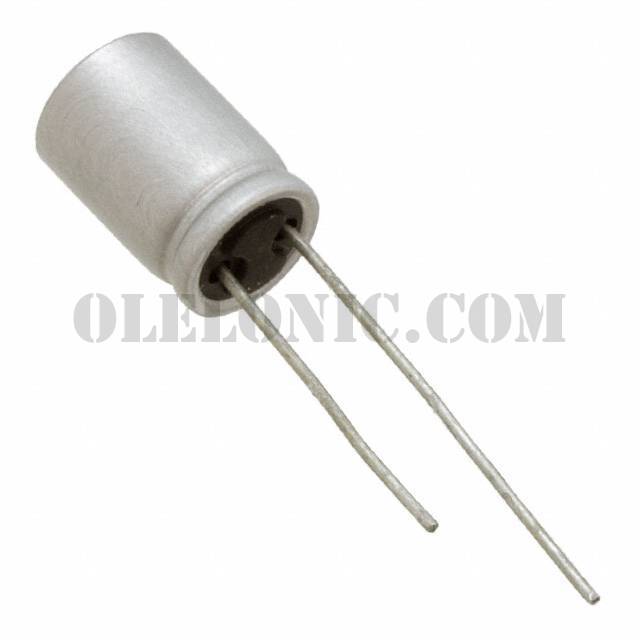

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLX Series
Standard Package	1
Manufacturer	Nichicon
Series	PLX
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	31mOhm
Lifetime @ Temp.	3000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2.1A @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLX1H270MDL1	Nichicon, 27µF 50V Aluminum Polymer Capacitor Radial, Can 33mOhm 3000 Hrs @ 125°C, PLX	View
PLX1V101MDL1TD	Nichicon, 100µF 35V Aluminum Polymer Capacitor Radial, Can 28mOhm 3000 Hrs @ 125°C, PLX	View
PLX1H220MCL1	Nichicon, 22µF 50V Aluminum Polymer Capacitor Radial, Can 35mOhm 3000 Hrs @ 125°C, PLX	View
PLX1V101MDL1	Nichicon, 100µF 35V Aluminum Polymer Capacitor Radial, Can 28mOhm 3000 Hrs @ 125°C, PLX	View
PLX1D151MDL1	Nichicon, 150µF 20V Aluminum Polymer Capacitor Radial, Can 26mOhm 3000 Hrs @ 125°C, PLX	View
PLX1H470MDL1TD	Nichicon, 47µF 50V Aluminum Polymer Capacitor Radial, Can 29mOhm 3000 Hrs @ 125°C, PLX	View
PLX1E820MCL1	Nichicon, 82µF 25V Aluminum Polymer Capacitor Radial, Can 28mOhm 3000 Hrs @ 125°C, PLX	View
PLX1E181MDL1	Nichicon, 180µF 25V Aluminum Polymer Capacitor Radial, Can 25mOhm 3000 Hrs @ 125°C, PLX	View
PLX1H270MDL1TD	Nichicon, 27µF 50V Aluminum Polymer Capacitor Radial, Can 33mOhm 3000 Hrs @ 125°C, PLX	View
PLX1C221MDL1TD	Nichicon, 220µF 16V Aluminum Polymer Capacitor Radial, Can 25mOhm 3000 Hrs @ 125°C, PLX	View
PLX1V560MDL1TD	Nichicon, 56µF 35V Aluminum Polymer Capacitor Radial, Can 31mOhm 3000 Hrs @ 125°C, PLX	View
PLX1D121MCL1TD	Nichicon, 120µF 20V Aluminum Polymer Capacitor Radial, Can 27mOhm 3000 Hrs @ 125°C, PLX	View

PLX1V560MDL1TD

Part NumberPLX1V560MDL1TD
