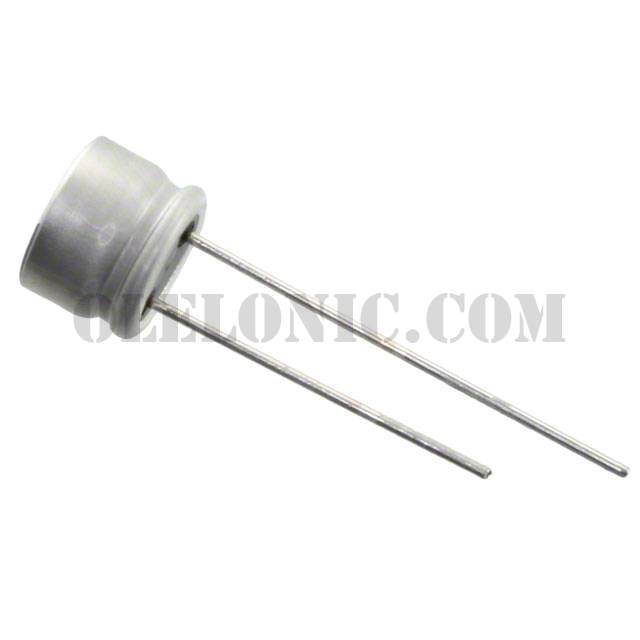

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PLS Series
Standard Package	1
Manufacturer	Nichicon
Series	PLS
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	560µF
Tolerance	±20%
Voltage - Rated	4V
ESR (Equivalent Series Resistance)	15mOhm
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	3.9A @ 100kHz
Lead Spacing	0.138" (3.50mm)
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.276" (7.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

PLS0E821MCO8TD	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 8mOhm 5000 Hrs @ 105°C, PLS	View
PLS1C331MDO1TD	Nichicon, 330µF 16V Aluminum Polymer Capacitor Radial, Can 9mOhm 5000 Hrs @ 105°C, PLS	View
PLS0J561MCO8	Nichicon, 560µF 6.3V Aluminum Polymer Capacitor Radial, Can 9mOhm 5000 Hrs @ 105°C, PLS	View
PLS0E331MCO8TD	Nichicon, 330µF 2.5V Aluminum Polymer Capacitor Radial, Can 8mOhm 5000 Hrs @ 105°C, PLS	View
PLS0G681MDO1TD	Nichicon, 680µF 4V Aluminum Polymer Capacitor Radial, Can 7mOhm 5000 Hrs @ 105°C, PLS	View
PLS0J561MCO6TD	Nichicon, 560µF 6.3V Aluminum Polymer Capacitor Radial, Can 8mOhm 5000 Hrs @ 105°C, PLS	View
PLS0G271MCO8TD	Nichicon, 270µF 4V Aluminum Polymer Capacitor Radial, Can 8mOhm 5000 Hrs @ 105°C, PLS	View
PLS0G561MCO6TD	Nichicon, 560µF 4V Aluminum Polymer Capacitor Radial, Can 7mOhm 5000 Hrs @ 105°C, PLS	View
PLS0E821MDO1TD	Nichicon, 820µF 2.5V Aluminum Polymer Capacitor Radial, Can 7mOhm 5000 Hrs @ 105°C, PLS	View
PLS0J391MCL2TD	Nichicon, 390µF 6.3V Aluminum Polymer Capacitor Radial, Can 15mOhm 5000 Hrs @ 105°C, PLS	View
PLS1A271MDO1TD	Nichicon, 270µF 10V Aluminum Polymer Capacitor Radial, Can 8mOhm 5000 Hrs @ 105°C, PLS	View
PLS1C471MDO1TD	Nichicon, 470µF 16V Aluminum Polymer Capacitor Radial, Can 9mOhm 5000 Hrs @ 105°C, PLS	View

PLS0G561MCL2TD

Part NumberPLS0G561MCL2TD
