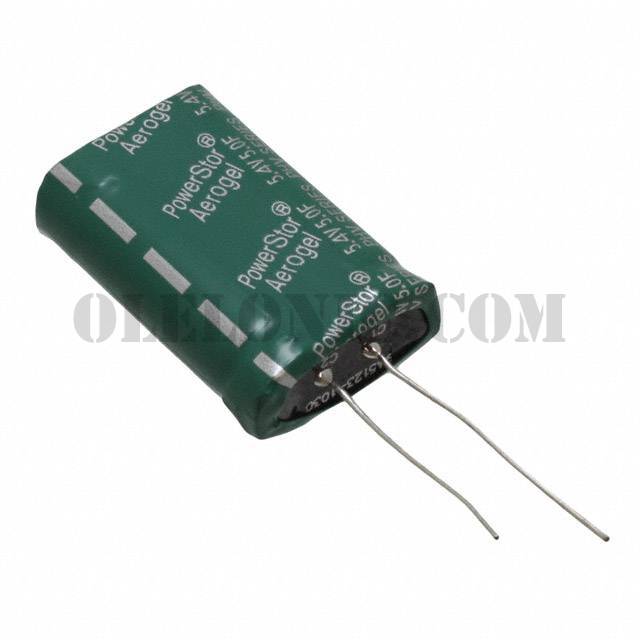

PHV-5R4H505-R

Part NumberPHV-5R4H505-R

ManufacturerEaton - Electronics Division

DescriptionCAP 5F -10% +30% 5.4V T/H

DatasheetPHV Series

Package / CaseRadial, Can, Horizontal

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5F (EDLC) Supercapacitor 5.4V Radial, Can, Horizontal 70mOhm @ 100Hz 1000 Hrs @ 65°C

To learn about the specification of PHV-5R4H505-R, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PHV-5R4H505-R with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PHV-5R4H505-R.
We are offering PHV-5R4H505-R for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PHV-5R4H505-R - Product Attributes

Categories	Capacitors / Electric Double Layer Capacitors (EDLC), Supercapacitors
Datasheet	PHV Series
Standard Package	100
Manufacturer	Eaton - Electronics Division
Series	PowerStor PHV
Packaging	Bulk
Part Status	Active
Capacitance	5F
Tolerance	-10%, +30%
Voltage - Rated	5.4V
ESR (Equivalent Series Resistance)	70mOhm @ 100Hz
Lifetime @ Temp.	1000 Hrs @ 65°C
Termination	PC Pins
Mounting Type	Through Hole
Package / Case	Radial, Can, Horizontal
Lead Spacing	0.209" (5.30mm)
Size / Dimension	1.280" L x 0.839" W (32.50mm x 21.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Operating Temperature	-40°C ~ 65°C
