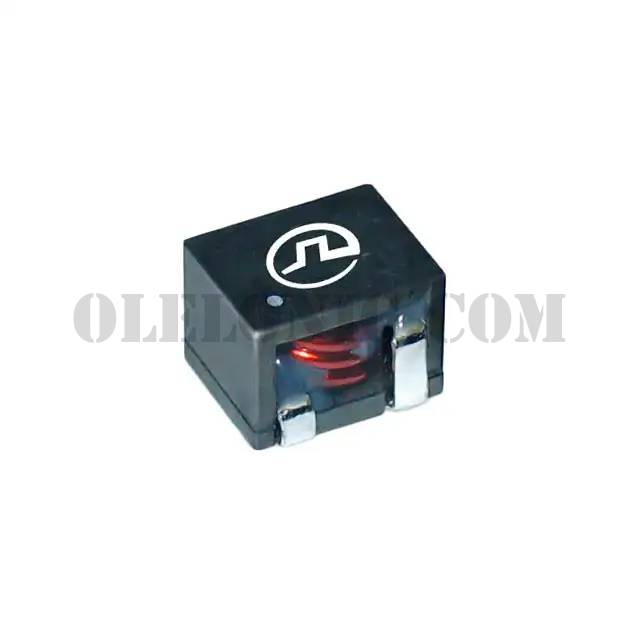

PG1083.323NL

Part NumberPG1083.323NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 32UH 9A 21.5 MOHM SMD

DatasheetPG1083NL Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description32µH Unshielded Wirewound Inductor 9A 21.5mOhm Max Nonstandard

To learn about the specification of PG1083.323NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PG1083.323NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PG1083.323NL.
We are offering PG1083.323NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PG1083.323NL - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PG1083NL Series

Standard Package

Manufacturer

Pulse Electronics Power

Series

PG1083NL

Packaging

Tray

Part Status

Active

Type

Wirewound

Material - Core

Inductance

32µH

Tolerance

±20%

Current Rating (Amps)

Current - Saturation

12.5A

Shielding

Unshielded

DC Resistance (DCR)

21.5mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.854" L x 0.846" W (21.70mm x 21.50mm)

Height - Seated (Max)

0.492" (12.50mm)
