PG0112

Part NumberPG0112

ManufacturerPulse Electronics Power

DescriptionFIXED IND 1.1UH 13.8A 7 MOHM TH

DatasheetTHT Pwr Inductors - Bare Coil Series

Package / CaseRadial, Vertical (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

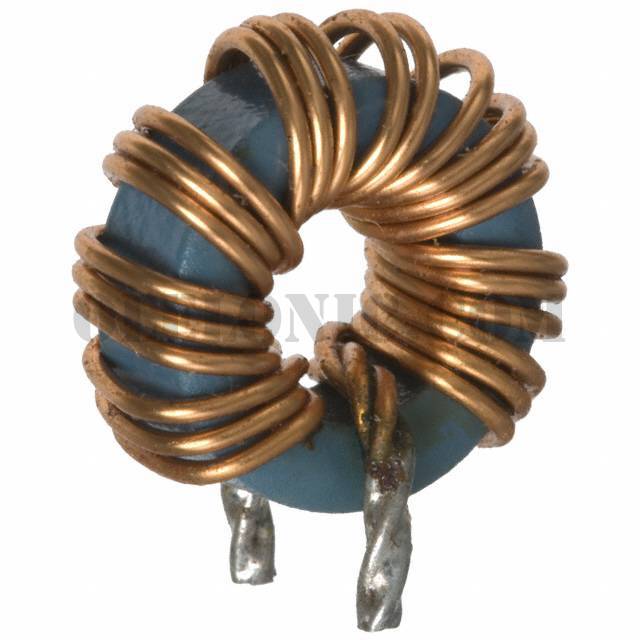

Detailed Description1.1µH Unshielded Toroidal Inductor 13.8A 7mOhm Max Radial, Vertical (Open)

To learn about the specification of PG0112, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PG0112 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PG0112.
We are offering PG0112 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PG0112 - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

THT Pwr Inductors - Bare Coil Series

Standard Package

Manufacturer

Pulse Electronics Power

Series

Bare Coil

Packaging

Tray

Part Status

Obsolete

Type

Toroidal

Material - Core

Inductance

1.1µH

Tolerance

Current Rating (Amps)

13.8A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

7mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Features

Mounting Type

Through Hole

Package / Case

Radial, Vertical (Open)

Supplier Device Package

Size / Dimension

0.630" Dia x 0.374" W (16.00mm x 9.50mm)

Height - Seated (Max)
