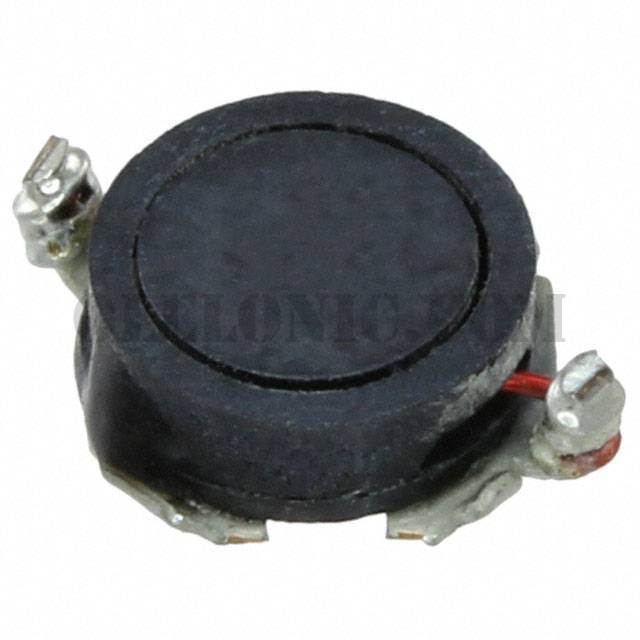

PG0085.223NLT

Part NumberPG0085.223NLT

ManufacturerPulse Electronics Power

DescriptionFIXED IND 22UH 400MA 360 MOHM

DatasheetPG0085NL Series Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description22µH Shielded Wirewound Inductor 400mA 360mOhm Max Nonstandard

To learn about the specification of PG0085.223NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PG0085.223NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PG0085.223NLT.
We are offering PG0085.223NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PG0085.223NLT - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PG0085NL Series Datasheet

Standard Package

2850

Manufacturer

Pulse Electronics Power

Series

PG0085NL

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

22µH

Tolerance

±20%

Current Rating (Amps)

400mA

Current - Saturation

400mA

Shielding

Shielded

DC Resistance (DCR)

360mOhm Max

Q @ Freq

Frequency - Self Resonant

33MHz

Ratings

Operating Temperature

-40°C ~ 130°C

Inductance Frequency - Test

100kHz

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.169" L x 0.169" W (4.30mm x 4.30mm)

Height - Seated (Max)

0.071" (1.80mm)
