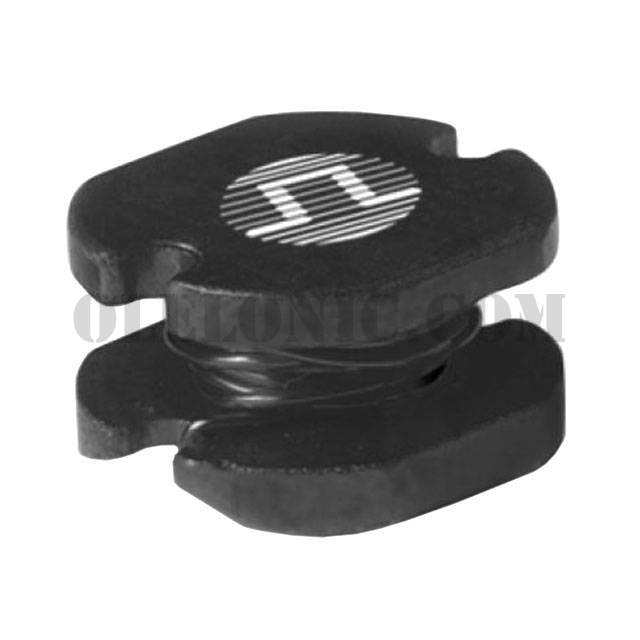

PG0015.564NLT

Part NumberPG0015.564NLT

ManufacturerPulse Electronics Power

DescriptionFIXED IND 560UH 320MA 1.9 OHM

DatasheetPG0015NL Series Datasheet

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description560µH Unshielded Wirewound Inductor 320mA 1.9Ohm Max Nonstandard

To learn about the specification of PG0015.564NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PG0015.564NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PG0015.564NLT.
We are offering PG0015.564NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PG0015.564NLT - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PG0015NL Series Datasheet

Standard Package

600

Manufacturer

Pulse Electronics Power

Series

PG0015NL

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

560µH

Tolerance

±20%

Current Rating (Amps)

320mA

Current - Saturation

320mA

Shielding

Unshielded

DC Resistance (DCR)

1.9Ohm Max

Q @ Freq

Frequency - Self Resonant

2.2MHz

Ratings

Operating Temperature

-40°C ~ 125°C

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.400" L x 0.360" W (10.15mm x 9.15mm)

Height - Seated (Max)

0.219" (5.55mm)
