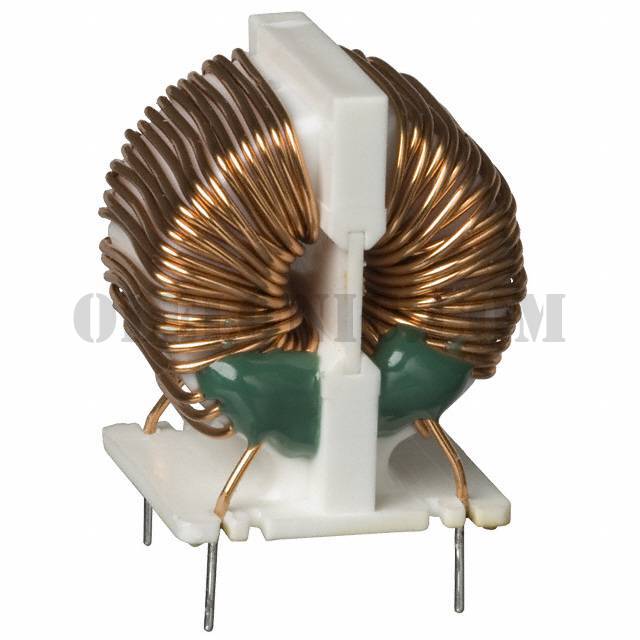

PFC2225BNP-502

Part NumberPFC2225BNP-502

ManufacturerSumida America Components Inc.

DescriptionCOMMON MODE CHOKE 5MH 3A 2LN TH

DatasheetPFC2225B

Package / CaseVertical, No Base, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description5mH @ 1kHz 2 Line Common Mode Choke Through Hole 3A DCR 81mOhm

To learn about the specification of PFC2225BNP-502, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PFC2225BNP-502 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PFC2225BNP-502.
We are offering PFC2225BNP-502 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PFC2225BNP-502 - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

PFC2225B

Standard Package

100

Manufacturer

Sumida America Components Inc.

Series

PFC

Packaging

Bulk

Part Status

Active

Filter Type

Number of Lines

Inductance @ Frequency

5mH @ 1kHz

Current Rating (Max)

DC Resistance (DCR) (Max)

81mOhm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

-40°C ~ 85°C

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

0.984" L x 0.787" W (25.00mm x 20.00mm)

Height (Max)

1.063" (27.00mm)

Package / Case

Vertical, No Base, 4 PC Pin
