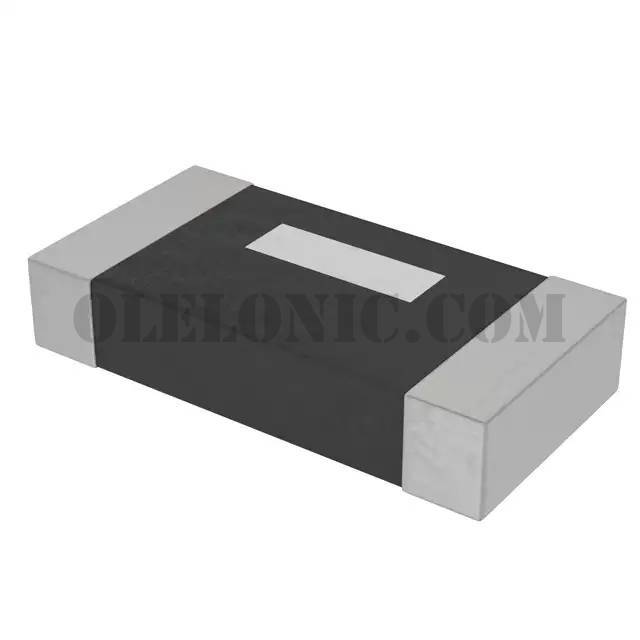

PF1206FRF070R03L

Part NumberPF1206FRF070R03L

ManufacturerYageo

DescriptionRES 0.03 OHM 1% 1/4W 1206

DatasheetPR, PF & PH Series Datasheet

Package / Case1206 (3216 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description30 mOhms ±1% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Current Sense, Moisture Resistant Metal Foil

To learn about the specification of PF1206FRF070R03L, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PF1206FRF070R03L with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PF1206FRF070R03L.
We are offering PF1206FRF070R03L for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PF1206FRF070R03L - Product Attributes

Categories	Resistors / Chip Resistor - Surface Mount
Datasheet	PR, PF & PH Series Datasheet
Standard Package	4000
Manufacturer	Yageo
Series	PF
Packaging	Tape & Reel (TR)
Part Status	Active
Resistance	30 mOhms
Tolerance	±1%
Power (Watts)	0.25W, 1/4W
Composition	Metal Foil
Features	Current Sense, Moisture Resistant
Temperature Coefficient	±100ppm/°C
Operating Temperature	-55°C ~ 155°C
Package / Case	1206 (3216 Metric)
Supplier Device Package	1206
Size / Dimension	0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max)	0.033" (0.85mm)
Number of Terminations	2
Failure Rate	-
