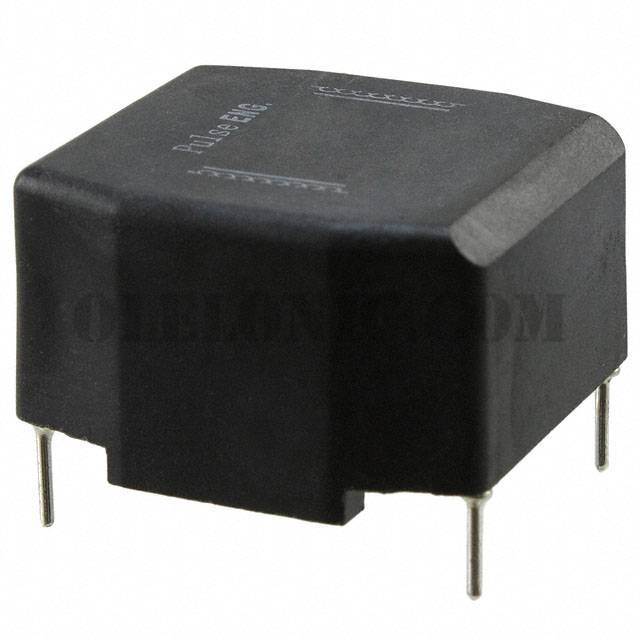

PE-96177NL

Part NumberPE-96177NL

ManufacturerPulse Electronics Power

DescriptionCOMMON MODE CHOKE 3.15A 2LN TH

DatasheetPE-961xx Series

Package / CaseHorizontal, 4 PC Pin

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Through Hole 3.15A (Typ) DCR 60mOhm

To learn about the specification of PE-96177NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-96177NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-96177NL.
We are offering PE-96177NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-96177NL - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

PE-961xx Series

Standard Package

Manufacturer

Pulse Electronics Power

Series

Packaging

Tray

Part Status

Active

Filter Type

Power Line

Number of Lines

Current Rating (Max)

3.15A (Typ)

DC Resistance (DCR) (Max)

60mOhm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

-40°C ~ 125°C

Ratings

Approvals

Features

Mounting Type

Through Hole

Size / Dimension

1.102" L x 1.070" W (28.00mm x 27.18mm)

Height (Max)

0.660" (16.76mm)

Package / Case

Horizontal, 4 PC Pin
