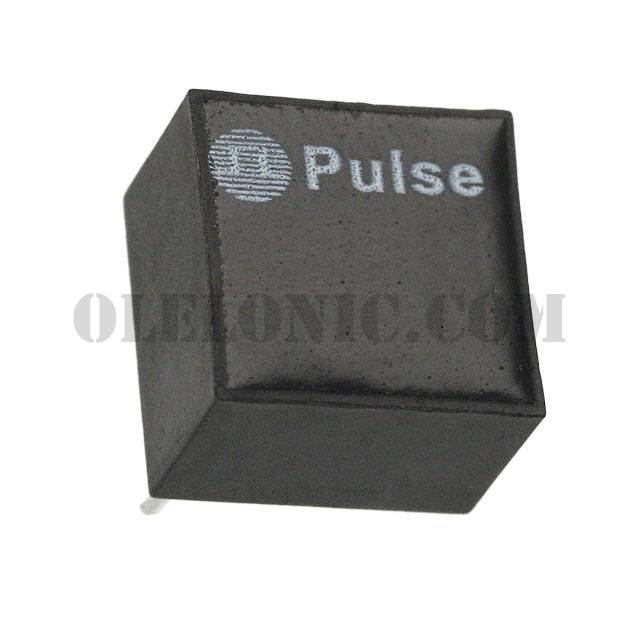

PE-53822NL

Part NumberPE-53822NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 54UH 1A 200 MOHM TH

DatasheetTHT/SMT Power Inductors - Toroid, Simple Switcher

Package / CaseRadial, Vertical - Corner Terminals

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description54µH Shielded Toroidal Inductor 1A 200mOhm Radial, Vertical - Corner Terminals

To learn about the specification of PE-53822NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-53822NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-53822NL.
We are offering PE-53822NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-53822NL - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	THT/SMT Power Inductors - Toroid, Simple Switcher
Standard Package	40
Manufacturer	Pulse Electronics Power
Series	-
Packaging	Tube
Part Status	Active
Type	Toroidal
Material - Core	-
Inductance	54µH
Tolerance	±20%
Current Rating (Amps)	1A
Current - Saturation	-
Shielding	Shielded
DC Resistance (DCR)	200mOhm
Q @ Freq	-
Frequency - Self Resonant	-
Ratings	-
Operating Temperature	-40°C ~ 130°C
Features	-
Mounting Type	Through Hole
Package / Case	Radial, Vertical - Corner Terminals
Supplier Device Package	-
Size / Dimension	0.495" L x 0.495" W (12.57mm x 12.57mm)
Height - Seated (Max)	0.375" (9.52mm)
