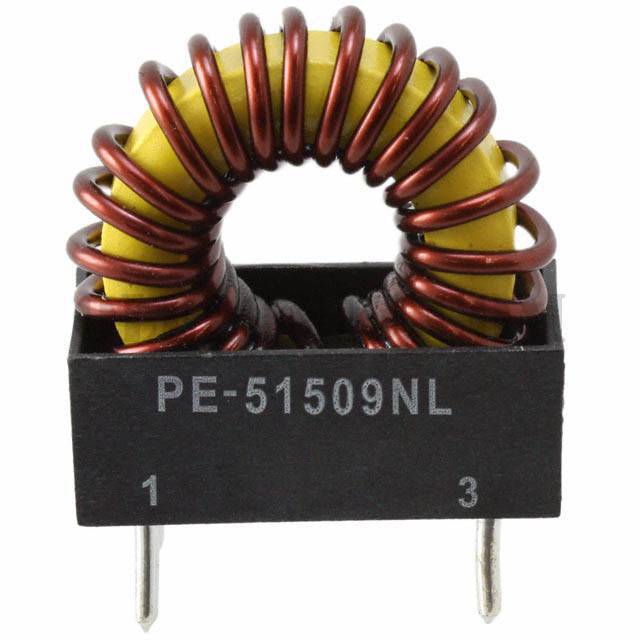

PE-51509NL

Part NumberPE-51509NL

ManufacturerPulse Electronics Power

DescriptionFIXED IND 14UH 10A 9 MOHM TH

DatasheetPE-515xx High Current Inductors

Package / CaseRadial, Vertical, 4 Leads (Open)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description14µH Unshielded Toroidal Inductor 10A 9mOhm Max Radial, Vertical, 4 Leads (Open)

To learn about the specification of PE-51509NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-51509NL with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-51509NL.
We are offering PE-51509NL for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-51509NL - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PE-515xx High Current Inductors

Standard Package

Manufacturer

Pulse Electronics Power

Series

Packaging

Tray

Part Status

Active

Type

Toroidal

Material - Core

Inductance

14µH

Tolerance

Current Rating (Amps)

10A

Current - Saturation

Shielding

Unshielded

DC Resistance (DCR)

9mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 130°C

Inductance Frequency - Test

50kHz

Features

Mounting Type

Through Hole

Package / Case

Radial, Vertical, 4 Leads (Open)

Supplier Device Package

Size / Dimension

1.200" L x 0.600" W (30.48mm x 15.24mm)

Height - Seated (Max)

1.200" (30.48mm)
