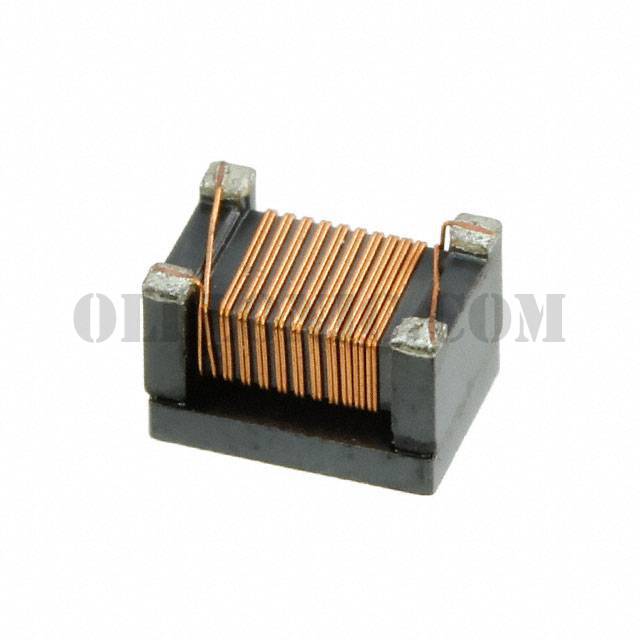

PE-1210CCMC601STS

Part NumberPE-1210CCMC601STS

ManufacturerPulse Electronics Network

DescriptionCMC CHIP 600OHM 600MA SMD

DatasheetPE-1210CCMCzzzSTS Datasheet

Package / CaseHorizontal, 4 PC Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 600 Ohms @ 100MHz 1A DCR 120mOhm

To learn about the specification of PE-1210CCMC601STS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-1210CCMC601STS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-1210CCMC601STS.
We are offering PE-1210CCMC601STS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-1210CCMC601STS - Product Attributes

Categories	Filters / Common Mode Chokes
Datasheet	PE-1210CCMCzzzSTS Datasheet
Standard Package	3000
Manufacturer	Pulse Electronics Network
Series	ChipChoke™
Packaging	Tape & Reel (TR)
Part Status	Active
Filter Type	-
Number of Lines	2
Impedance @ Frequency	600 Ohms @ 100MHz
Current Rating (Max)	1A
DC Resistance (DCR) (Max)	120mOhm
Voltage Rating - DC	50V
Voltage Rating - AC	-
Operating Temperature	-40°C ~ 85°C
Ratings	-
Approvals	-
Features	-
Mounting Type	Surface Mount
Size / Dimension	0.126" L x 0.098" W (3.20mm x 2.50mm)
Height (Max)	0.079" (2.00mm)
Package / Case	Horizontal, 4 PC Pad
