Categories	Filters / Ferrite Beads and Chips
Datasheet	Chip Ferrite Beads Datasheet
Standard Package	4000
Manufacturer	Pulse Electronics Network
Series	FB
Packaging	Tape & Reel (TR)
Part Status	Active
Filter Type	Signal Line
Number of Lines	1
Impedance @ Frequency	120 Ohms @ 100MHz
Current Rating (Max)	800mA
DC Resistance (DCR) (Max)	150mOhm
Ratings	-
Operating Temperature	-40°C ~ 105°C

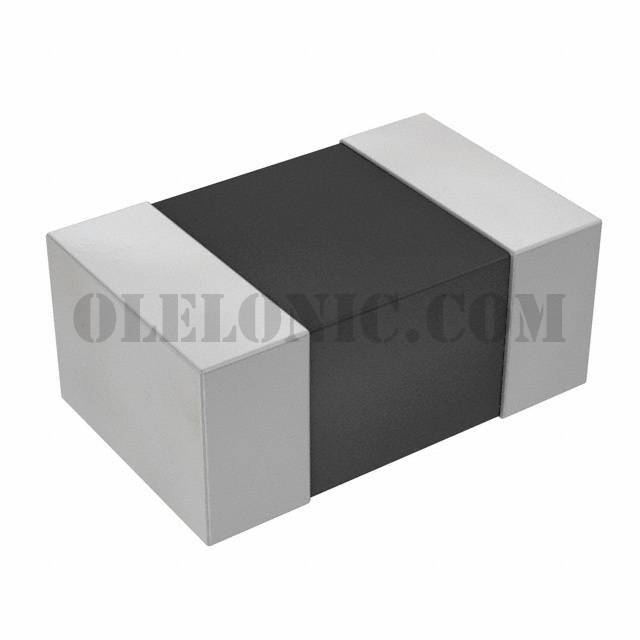

Package / Case	0805 (2012 Metric)
Mounting Type	Surface Mount
Height (Max)	0.041" (1.05mm)
Size / Dimension	0.079" L x 0.049" W (2.00mm x 1.25mm)

FBMH2016HM121NT	Taiyo Yuden, 120 Ohms @ 100MHz 1 Power Line Ferrite Bead 0806 (2016 Metric) 4.5A 15mOhm, FB	View
FBMH1608HM601-T	Taiyo Yuden, 600 Ohms @ 100MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 900mA 170mOhm, FB	View
FBMJ2125HM330-T	Taiyo Yuden, 33 Ohms @ 100MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 4A 8mOhm, FB	View
FBMJ1608HS280NTW	Taiyo Yuden, 28 Ohms @ 100MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 6A 6mOhm, FB	View
FBMH3216HM501NT	Taiyo Yuden, 500 Ohms @ 100MHz 1 Power Line Ferrite Bead 1206 (3216 Metric) 2A 70mOhm, FB	View
FBMH4532HM202-T	Taiyo Yuden, 2 kOhms @ 100MHz 1 Power Line Ferrite Bead 1812 (4532 Metric) 1.3A 130mOhm, FB	View
FBMJ1608HS280NTW	Taiyo Yuden, 28 Ohms @ 100MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 6A 6mOhm, FB	View
FBMJ4516HM900-T	Taiyo Yuden, 90 Ohms @ 100MHz 1 Power Line Ferrite Bead 1806 (4516 Metric) 4A 14mOhm, FB	View
FBMJ1608HM230NT	Taiyo Yuden, 23 Ohms @ 100MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 4A 7mOhm, FB	View
FBMJ1608HS220NTR	Taiyo Yuden, 22 Ohms @ 100MHz 1 Power Line Ferrite Bead 0603 (1608 Metric) 7.5A 4mOhm, FB	View
FBMH2012HM121-T	Taiyo Yuden, 120 Ohms @ 100MHz 1 Power Line Ferrite Bead 0805 (2012 Metric) 2.5A 32mOhm, FB	View
FBMH4516HM851NT	Taiyo Yuden, 850 Ohms @ 100MHz 1 Power Line Ferrite Bead 1806 (4516 Metric) 1.5A 100mOhm, FB	View

PE-0805FB121ST

Part NumberPE-0805FB121ST
