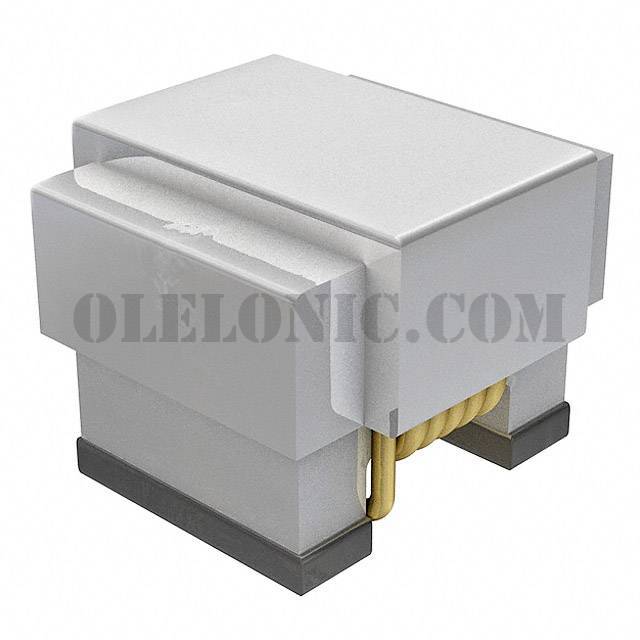

PE-0805CD391GTT

PE-0805CD391GTT

Part NumberPE-0805CD391GTT

ManufacturerPulse Electronics Network

DescriptionFIXED IND 386NH 290MA 1.5 OHM

DatasheetRF Chip Inductors

Package / Case0805 (2012 Metric)

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description386nH Unshielded Wirewound Inductor 290mA 1.5Ohm Max 0805 (2012 Metric)

To learn about the specification of PE-0805CD391GTT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-0805CD391GTT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-0805CD391GTT.
We are offering PE-0805CD391GTT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-0805CD391GTT - Product Attributes

Categories	Inductors, Coils, Chokes / Fixed Inductors
Datasheet	RF Chip Inductors
Standard Package	1
Manufacturer	Pulse Electronics Network
Series	0805CD
Packaging	Cut Tape (CT)
Part Status	Active
Type	Wirewound
Material - Core	Ceramic
Inductance	386nH
Tolerance	±2%
Current Rating (Amps)	290mA
Current - Saturation	-
Shielding	Unshielded
DC Resistance (DCR)	1.5Ohm Max
Q @ Freq	35 @ 250MHz
Frequency - Self Resonant	560MHz
Ratings	-
Operating Temperature	-40°C ~ 125°C
Inductance Frequency - Test	50MHz
Mounting Type	Surface Mount
Package / Case	0805 (2012 Metric)
Supplier Device Package	0805 (2012 Metric)
Size / Dimension	0.090" L x 0.066" W (2.29mm x 1.68mm)
Height - Seated (Max)	0.062" (1.58mm)
