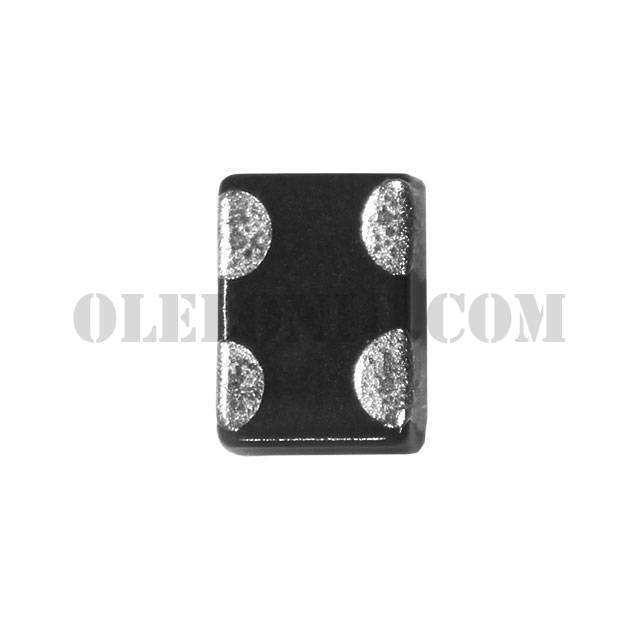

PE-0302MCMC120GT

Part NumberPE-0302MCMC120GT

ManufacturerPulse Electronics Network

DescriptionCMC 130MA 2LN 12 OHM SMD

Datasheet0201, 0302, 0403 Series

Package / Case0302 (0806 Metric), 4 Lead

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description2 Line Common Mode Choke Surface Mount 12 Ohms @ 100MHz 130mA DCR 2.5Ohm

To learn about the specification of PE-0302MCMC120GT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PE-0302MCMC120GT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PE-0302MCMC120GT.
We are offering PE-0302MCMC120GT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PE-0302MCMC120GT - Product Attributes

Categories

Filters / Common Mode Chokes

Datasheet

0201, 0302, 0403 Series

Standard Package

10000

Manufacturer

Pulse Electronics Network

Series

0302

Packaging

Tape & Reel (TR)

Part Status

Obsolete

Filter Type

Signal Line

Number of Lines

Impedance @ Frequency

12 Ohms @ 100MHz

Current Rating (Max)

130mA

DC Resistance (DCR) (Max)

2.5Ohm

Voltage Rating - DC

Voltage Rating - AC

Operating Temperature

-40°C ~ 85°C

Ratings

Approvals

Features

Mounting Type

Surface Mount

Size / Dimension

0.033" L x 0.026" W (0.85mm x 0.65mm)

Height (Max)

0.018" (0.45mm)

Package / Case

0302 (0806 Metric), 4 Lead
