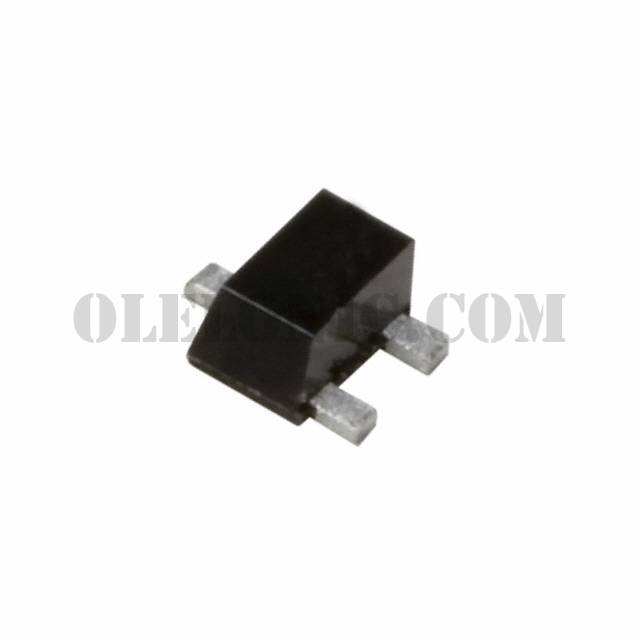

PDTC114YEF,115

Part NumberPDTC114YEF,115

ManufacturerNXP USA Inc.

DescriptionTRANS PREBIAS NPN 250MW SC89

DatasheetPDTC114Y Series

Package / CaseSC-89, SOT-490

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionPre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50V 100mA 250mW Surface Mount SC-89

To learn about the specification of PDTC114YEF,115, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PDTC114YEF,115 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PDTC114YEF,115.
We are offering PDTC114YEF,115 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PDTC114YEF,115 - Product Attributes

Categories

Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Single, Pre-Biased

Datasheet

PDTC114Y Series

Standard Package

Manufacturer

NXP USA Inc.

Series

Packaging

Cut Tape (CT)

Part Status

Obsolete

Transistor Type

NPN - Pre-Biased

Current - Collector (Ic) (Max)

100mA

Voltage - Collector Emitter Breakdown (Max)

50V

Resistor - Base (R1)

10 kOhms

Resistor - Emitter Base (R2)

47 kOhms

DC Current Gain (hFE) (Min) @ Ic, Vce

100 @ 5mA, 5V

Vce Saturation (Max) @ Ib, Ic

100mV @ 250µA, 5mA

Current - Collector Cutoff (Max)

1µA

Power - Max

250mW

Mounting Type

Surface Mount

Package / Case

SC-89, SOT-490

Supplier Device Package

SC-89

Base Part Number

PDTC114
