Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - RF
Datasheet	PD20015(S)-E
Standard Package	50
Manufacturer	STMicroelectronics
Series	-
Packaging	Tube
Part Status	Active
Transistor Type	LDMOS
Frequency	2GHz
Gain	11dB
Voltage - Test	13.6V
Current Rating (Amps)	7A
Noise Figure	-
Current - Test	350mA
Power - Output	15W
Voltage - Rated	40V

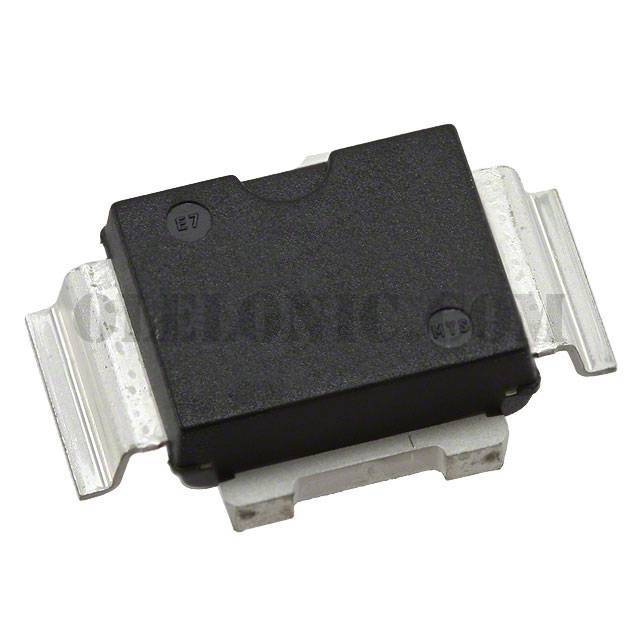

Package / Case	PowerSO-10RF Exposed Bottom Pad (2 Formed Leads)
Supplier Device Package	PowerSO-10RF (Formed Lead)
