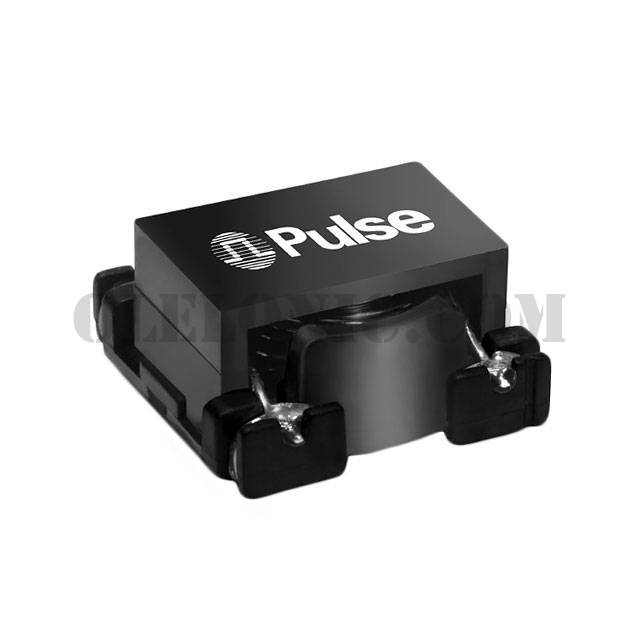

PD0120.152NLT

Part NumberPD0120.152NLT

ManufacturerPulse Electronics Power

DescriptionFIXED IND 1.8UH 14.2A 3 MOHM SMD

DatasheetPD0120NL Series

Package / CaseNonstandard

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description1.8µH Unshielded Wirewound Inductor 14.2A 3mOhm Max Nonstandard

To learn about the specification of PD0120.152NLT, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PD0120.152NLT with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of PD0120.152NLT.
We are offering PD0120.152NLT for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

PD0120.152NLT - Product Attributes

Categories

Inductors, Coils, Chokes / Fixed Inductors

Datasheet

PD0120NL Series

Standard Package

250

Manufacturer

Pulse Electronics Power

Series

PD0120NL

Packaging

Tape & Reel (TR)

Part Status

Active

Type

Wirewound

Material - Core

Inductance

1.8µH

Tolerance

±10%

Current Rating (Amps)

14.2A

Current - Saturation

24.3A

Shielding

Unshielded

DC Resistance (DCR)

3mOhm Max

Q @ Freq

Frequency - Self Resonant

Ratings

Operating Temperature

-40°C ~ 125°C

Features

Mounting Type

Surface Mount

Package / Case

Nonstandard

Supplier Device Package

Size / Dimension

0.638" L x 0.628" W (16.20mm x 15.95mm)

Height - Seated (Max)

0.323" (8.20mm)
