Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCX Series
Standard Package	1
Manufacturer	Nichicon
Series	PCX
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	56µF
Tolerance	±20%
Voltage - Rated	20V
ESR (Equivalent Series Resistance)	50mOhm
Lifetime @ Temp.	3000 Hrs @ 125°C
Operating Temperature	-55°C ~ 125°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	1.3A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCX1V680MCL1GS	Nichicon, 68µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 30mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E560MCS1GS	Nichicon, 56µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 1500 Hrs @ 125°C, PCX	View
PCX1D121MCL6GS	Nichicon, 120µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 29mOhm 3000 Hrs @ 125°C, PCX	View
PCX1C820MCS1GS	Nichicon, 82µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 45mOhm 3000 Hrs @ 125°C, PCX	View
PCX1H330MCS1GS	Nichicon, 33µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 31mOhm 3000 Hrs @ 125°C, PCX	View
PCX1H270MCL1GS	Nichicon, 27µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 3000 Hrs @ 125°C, PCX	View
PCX1D560MCL1GS	Nichicon, 56µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 50mOhm 3000 Hrs @ 125°C, PCX	View
PCX1C221MCL1GS	Nichicon, 220µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 3000 Hrs @ 125°C, PCX	View
PCX1E820MCS1GS	Nichicon, 82µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 30mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V100MCL1GS	Nichicon, 10µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 85mOhm 1500 Hrs @ 125°C, PCX	View
PCX1C820MCL1GS	Nichicon, 82µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 45mOhm 3000 Hrs @ 125°C, PCX	View
PCX1V560MCL1GS	Nichicon, 56µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 33mOhm 3000 Hrs @ 125°C, PCX	View

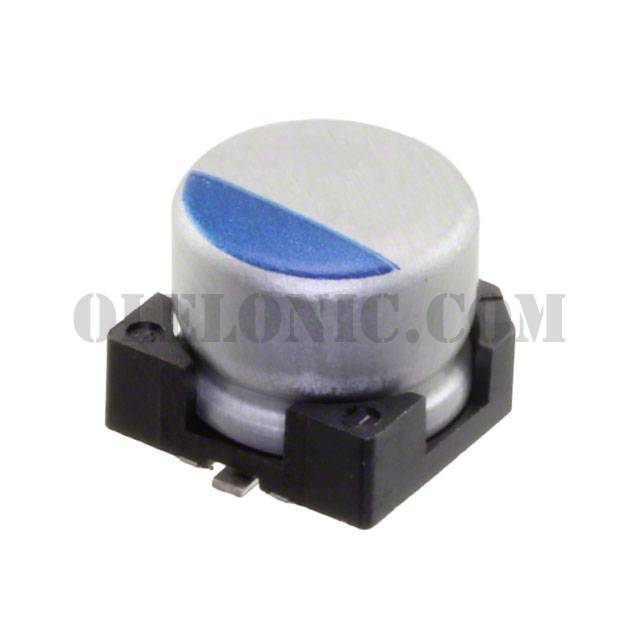

PCX1D560MCS1GS

Part NumberPCX1D560MCS1GS
