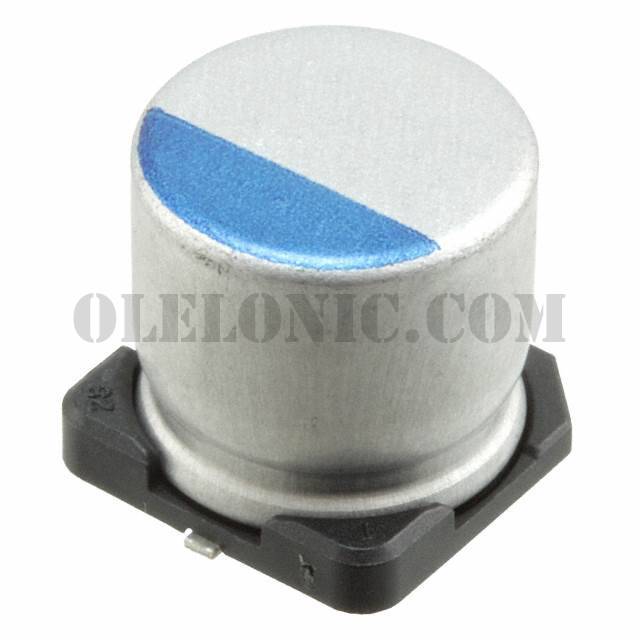

Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCV Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	PCV
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	100µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	29mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	2.2A @ 100kHz
Lead Spacing	-
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.394" (10.00mm)
Surface Mount Land Size	0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCV1E121MCL1GS	Nichicon, 120µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 35mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V820MCL2GS	Nichicon, 82µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D151MCL6GS	Nichicon, 150µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D221MCL1GS	Nichicon, 220µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E820MCL2GS	Nichicon, 82µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 47mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C221MCL6GS	Nichicon, 220µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 27mOhm 3000 Hrs @ 105°C, PCV	View
PCV2B150MCL1GS	Nichicon, 15µF 125V Aluminum Polymer Capacitor Radial, Can - SMD 48mOhm 3000 Hrs @ 105°C, PCV	View
PCV1J5R6MCL1GS	Nichicon, 5.6µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 105mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E151MCL7GS	Nichicon, 150µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 23mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E271MCL2GS	Nichicon, 270µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 23mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C681MCL2GS	Nichicon, 680µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 19mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E330MCL1GS	Nichicon, 33µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 60mOhm 3000 Hrs @ 105°C, PCV	View

PCV1V101MCL1GS

Part NumberPCV1V101MCL1GS
