Categories	Capacitors / Aluminum - Polymer Capacitors
Datasheet	PCV Series Datasheet
Standard Package	1
Manufacturer	Nichicon
Series	PCV
Packaging	Cut Tape (CT)
Part Status	Active
Type	Polymer
Capacitance	39µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	29mOhm
Lifetime @ Temp.	3000 Hrs @ 105°C
Operating Temperature	-55°C ~ 105°C
Ratings	-
Applications	General Purpose
Ripple Current @ High Frequency	3.4A @ 100kHz
Lead Spacing	-
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.472" (12.00mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD

PCV1D151MCL6GS	Nichicon, 150µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V121MCL2GS	Nichicon, 120µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 24mOhm 3000 Hrs @ 105°C, PCV	View
PCV1J220MCL1GS	Nichicon, 22µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 56mOhm 3000 Hrs @ 105°C, PCV	View
PCV2B8R2MCL1GS	Nichicon, 8.2µF 125V Aluminum Polymer Capacitor Radial, Can - SMD 84mOhm 3000 Hrs @ 105°C, PCV	View
PCV1C271MCL1GS	Nichicon, 270µF 16V Aluminum Polymer Capacitor Radial, Can - SMD 26mOhm 3000 Hrs @ 105°C, PCV	View
PCV1E181MCL1GS	Nichicon, 180µF 25V Aluminum Polymer Capacitor Radial, Can - SMD 28mOhm 3000 Hrs @ 105°C, PCV	View
PCV1H470MCL7GS	Nichicon, 47µF 50V Aluminum Polymer Capacitor Radial, Can - SMD 29mOhm 3000 Hrs @ 105°C, PCV	View
PCV1J330MCL1GS	Nichicon, 33µF 63V Aluminum Polymer Capacitor Radial, Can - SMD 31mOhm 3000 Hrs @ 105°C, PCV	View
PCV1K150MCL1GS	Nichicon, 15µF 80V Aluminum Polymer Capacitor Radial, Can - SMD 39mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V121MCL7GS	Nichicon, 120µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 23mOhm 3000 Hrs @ 105°C, PCV	View
PCV1V680MCL1GS	Nichicon, 68µF 35V Aluminum Polymer Capacitor Radial, Can - SMD 37mOhm 3000 Hrs @ 105°C, PCV	View
PCV1D271MCL2GS	Nichicon, 270µF 20V Aluminum Polymer Capacitor Radial, Can - SMD 21mOhm 3000 Hrs @ 105°C, PCV	View

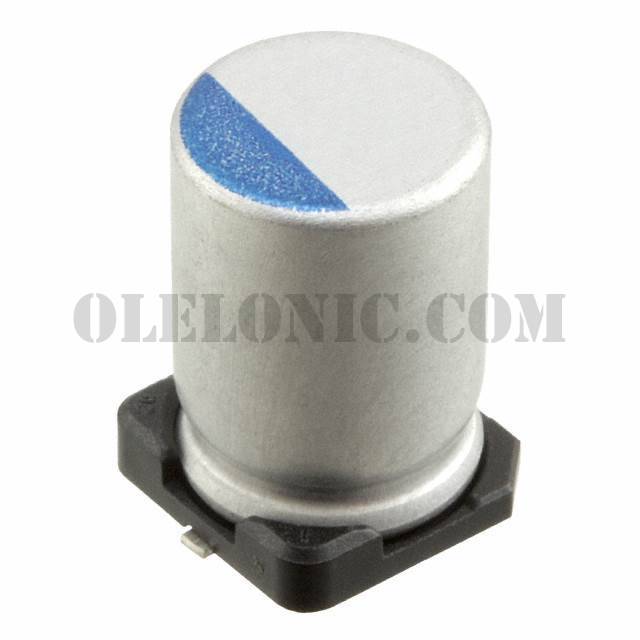

PCV1J390MCL2GS

Part NumberPCV1J390MCL2GS
